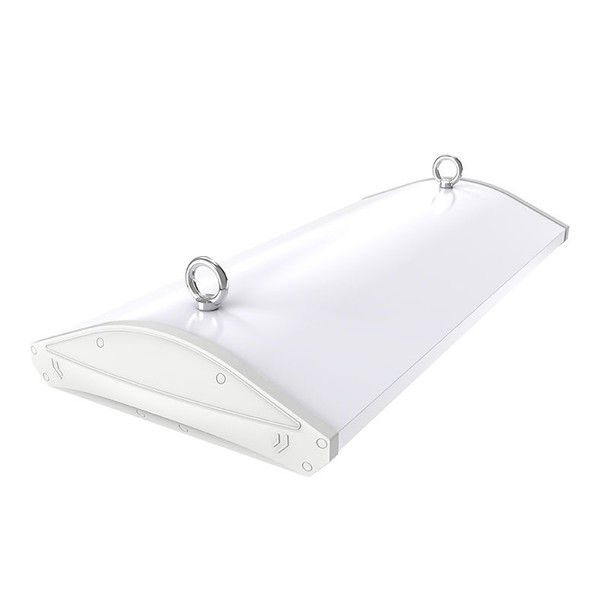

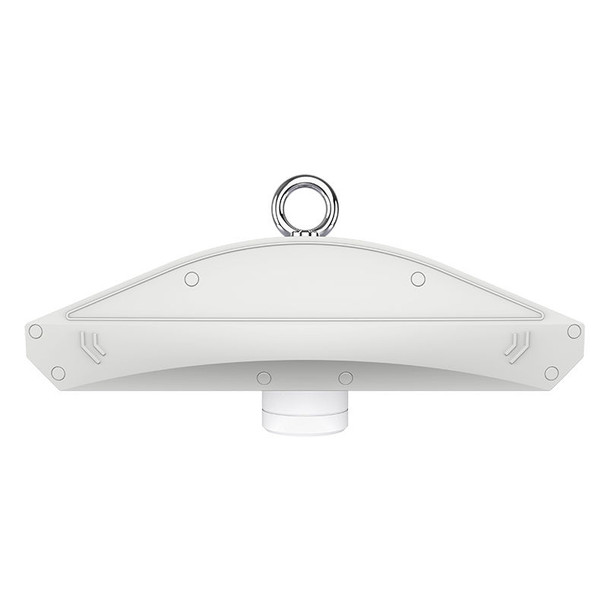

Advanced Lighting Solution for Hygiene-Sensitive Environments

Designed for optimal performance in food processing, commercial kitchens, clean rooms, and more, the Linear NSF Food Highbay is your go-to lighting fixture. With selectable color temperatures and adjustable lumen outputs, it ensures superior illumination while meeting stringent sanitary requirements.

Key Features and Benefits

High-Quality LED Chips: Provides high efficiency and effective heat dissipation.
Polycarbonate Lens: Offers a high flame retardant point for additional safety.
Long Life Span: Rated for 50,000 hours of continuous use.
Comprehensive Warranty: Backed by a 5-year warranty for peace of mind.
IP69 Rated: Complete protection against dust and high-pressure water jets.
NSF Certified: Meets all necessary hygiene standards for food-sensitive environments.
Durable Aluminum Housing: Robust and corrosion-resistant for long-lasting use.

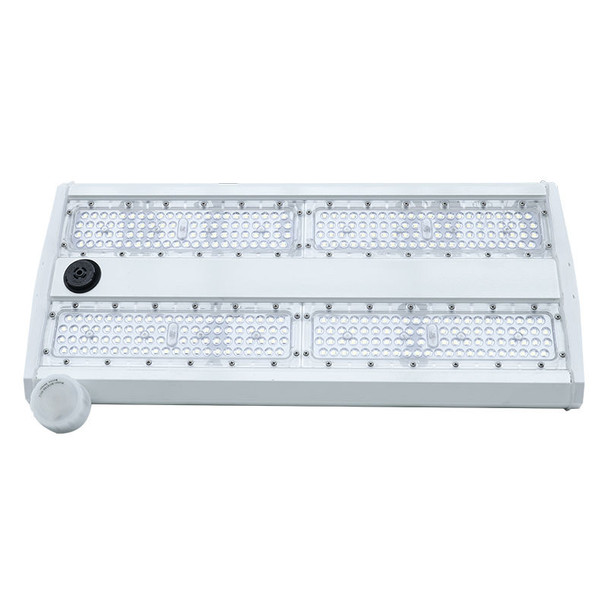

Twist-Lock Zhaga Socket: Pre-installed for easy installation of sensors.

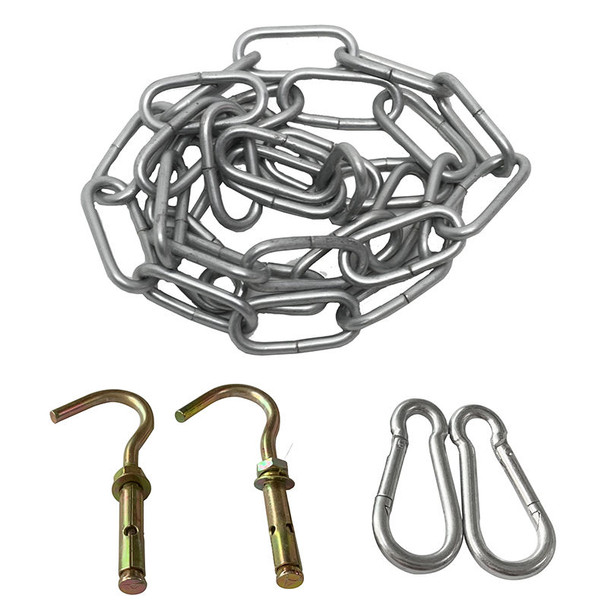

Versatile Mounting: Includes chains and rings for suspended mounting.

Specifications

Voltage: 120~277VAC / 50~60 Hz
Wattage: 80-160W
Power Factor: >0.95
Efficacy: 150 LPW
Operating Temperature: -22°F to 113°F
Suitable For Wet Locations
Total Lumens: 24000LM
Color Temperatures: 3500K / 4000K / 5000K
Color Rendering Index: >80
Wide Beam Angle Options: 15°, 25°, 40°, 60°, 90°, 120°, 30x15°, 49x21°, 136x78°

Common Uses

Ideal for food processing facilities, cold storage rooms, commercial kitchens, pharmaceutical manufacturing plants, clean rooms, and warehouses requiring high hygiene standards.

Resources and Downloads

Linear NSF Food Highbay Spec Sheet

Details

Beam Angle:	120°
CRI:	80
Color Temperature:	4000K\|5000K\|4500K
Compliance & Warranty:	5 Year Warranty\|UL Listed
Country of Origin:	VIETNAM
Dimming Type:	0-10V
Efficacy:	150LM/W
Finish / Color:	White
Housing Material:	Polycarbonate
Item Height (Inch):	2.716
Item Length (Inch):	21.89
Item Weight (LBS):	11.243
Item Width (Inch):	9.842
L70 Expected Life (hours):	50,000hr\|50000
LED Type:	Lumileds 3030
Lens Material:	optical PC lens
Lumen Output:	12000\|18000\|24000
Operating Temperature:	-30degree ~ +45degre
Power Factor:	0.9
Ships From:	CA
Special Features:	Selectable Wattage\|Selectable CCT\|Selectable Lumen Output\|Sensor Included\|NSF Rated
THD:	<20%
Voltage:	120-277V
Wattage:	80W\|120W\|160W
