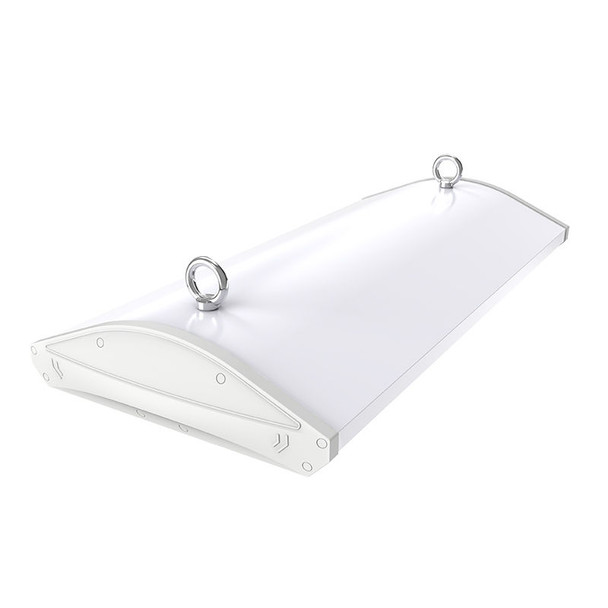

High-Efficiency Linear NSF Food Highbay

Introducing the top-of-the-line High-Efficiency Linear NSF Food Highbay, designed to deliver superior lighting solutions for food processing, commercial kitchens, and other hygiene-critical environments. This high bay fixture offers selectable wattage (120W/160W/200W) and color temperatures (3500K/4000K/5000K) with adjustable lumen outputs up to 30,000LM. Ideal for environments that demand strict hygiene standards, it is NSF certified and IP69 rated for exceptional durability.

Key Features and Benefits

Equipped with high-quality LED chips for remarkable efficiency, optimal heat dissipation, and superior lumen maintenance.
Features a high flame-retardant polycarbonate lens for added safety.
Frosted lens design effectively reduces glare, enhancing visual comfort.
Durable and long-lasting with a 50,000-hour rated life.
Comes with a reliable 5-year warranty for peace of mind.
Offers selectable wattage options: 120W, 160W, and 200W, to meet various lighting needs.
Flexible color temperature settings: 3500K, 4000K, and 5000K, providing optimal lighting for different environments.
Boasts a high efficacy of 150 LPW (lumens per watt).
NSF certified ensuring suitability for food safety standards.
IP69 rated for complete protection against dust and high-pressure water jets.

Technical Specifications

Voltage: 120~277VAC/50~60 Hz ensuring compatibility with a wide range of electrical systems.
Total lumen output: Up to 30,000LM.
Color Rendering Index (CRI): >80, for high-quality light reproduction.
Variety of beam angles: 15°, 25°, 40°, 60°, 90°, 120°, 30x15°, 49x21°, 136x78° to suit different lighting needs.
Operating temperature range: -22°F to 113°F, designed to perform in diverse environments.
Dimensions: 9.84"(H) x 21.91"(W) x 2.41"(D).

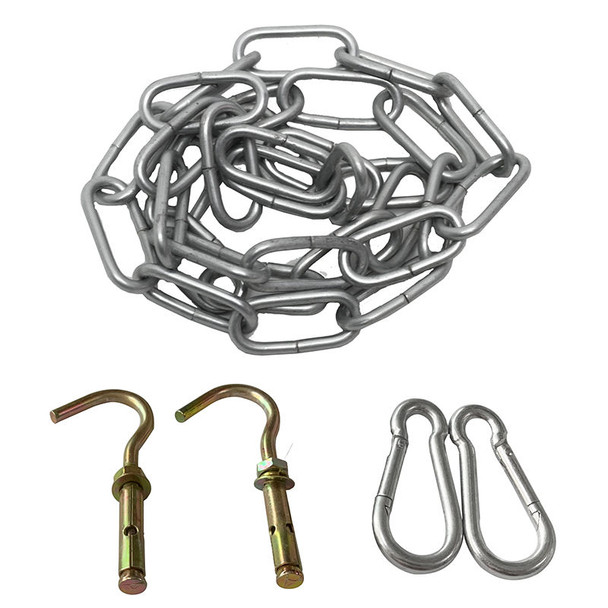

Easy to install with included suspension mount, hanging chains, and rings.

Common Uses

This versatile lighting solution is perfect for food processing facilities, cold storage rooms, commercial kitchens, pharmaceutical manufacturing, clean rooms, and warehouses that require stringent hygiene standards.

RESOURCES AND DOWNLOADS

Linear NSF Food Highbay Spec Sheet

Details

Beam Angle:	120°
CRI:	80
Color Temperature:	4000K\|5000K\|4500K
Compliance & Warranty:	5 Year Warranty\|UL Listed
Country of Origin:	VIETNAM
Dimming Type:	0-10V
Efficacy:	150LM/W
Finish / Color:	White
Housing Material:	Polycarbonate
Item Height (Inch):	2.716
Item Length (Inch):	21.89
Item Weight (LBS):	11.243
Item Width (Inch):	9.842
L70 Expected Life (hours):	50,000hr\|50000
LED Type:	Lumileds 3030
Lens Material:	optical PC lens
Lumen Output:	30000\|18000\|24000
Operating Temperature:	-30degree ~ +45degre
Power Factor:	0.9
Ships From:	CA

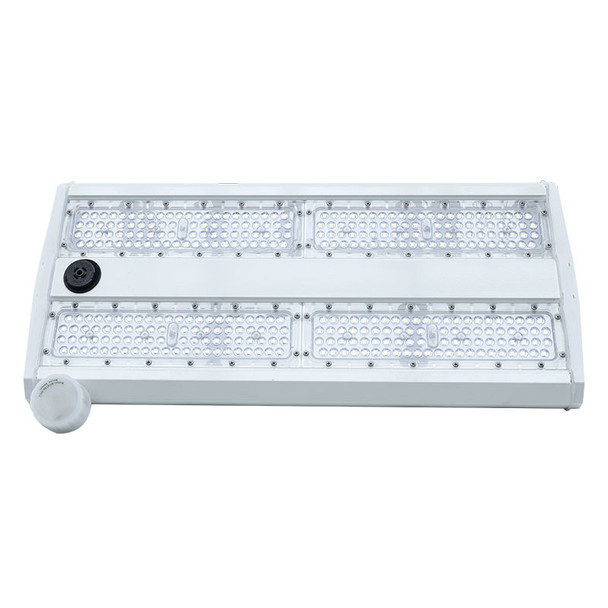

Special Features:	Selectable Wattage\|Selectable CCT\|Selectable Lumen Output\|Sensor Included\|NSF Rated
THD:	<20%
Voltage:	120-277V
Wattage:	120W\|160W\|200W
