Description

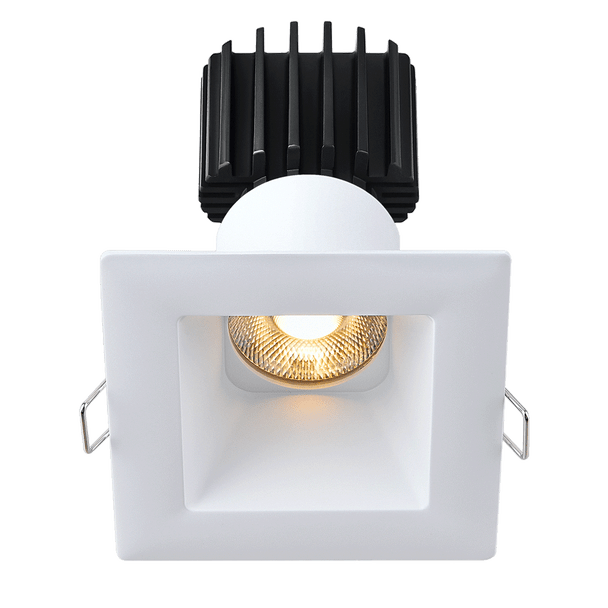

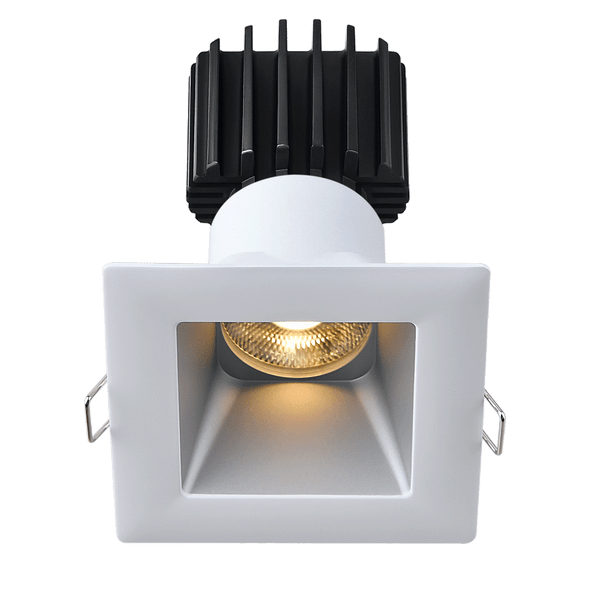

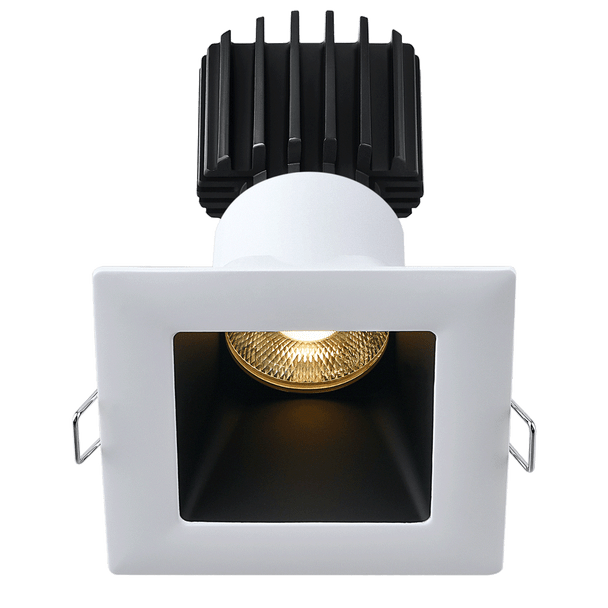

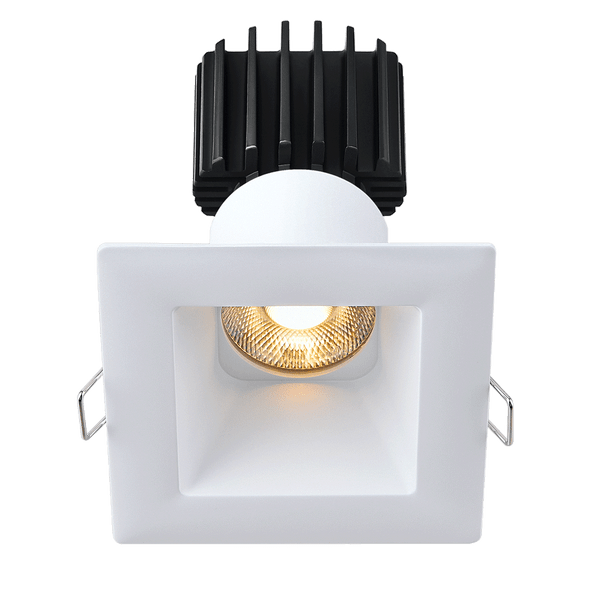

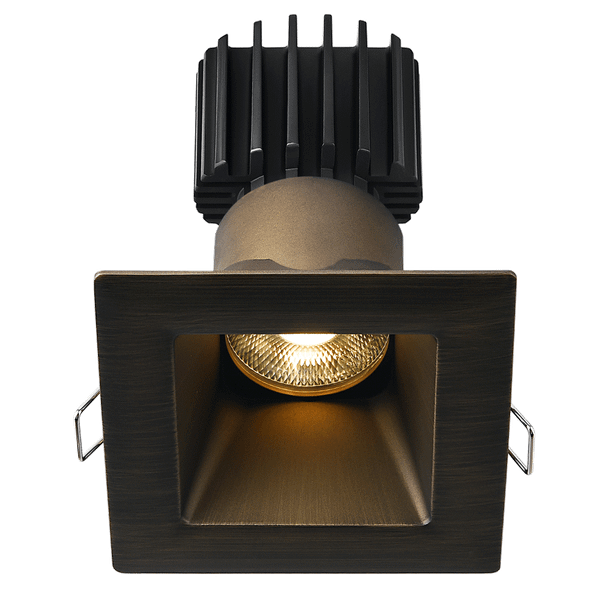

The Lotus Tangra L3F-SDW is a premium 3" fixed square deep regressed downlight engineered for low-glare ambient and general lighting. Built with a solid cast aluminum body and advanced optics, it delivers high visual comfort and excellent color quality. As part of Lotus’ modular Tangra lineup, it supports flexible driver and optical configurations for residential and commercial projects.

Key Features and Benefits

Deep regressed square design helps reduce glare while maintaining strong, focused illumination.
High color quality LED option at CRI98 for accurate color rendering in refined interior spaces.
Flexible dimming compatibility with Triac and 0-10V driver options (driver sold separately).
Certified for demanding installs: cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location IP54.
Backed by Lotus lifetime line support plus 5-year warranty coverage.

Specifications

Lumen Output: up to 1600
Wattage: 11W/15W selectable (with compatible Tangra driver)
Color Temperature: 3000K
CRI: 98
Beam Angle: 20° | 24° | 36° | 50°
Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
Input (fixture): 20-40V DC, max 350mA constant current
Max Ambient Temperature: +113°F (+45°C)
Rated Life (L70): 50,000 hours at 70% light output
Cutout: 2 5/8" square
Ceiling Clearance for Driver: 4" above ceiling

Common Uses

Ideal for residential and commercial ceilings where compact aperture, architectural appearance, and low glare are important, including living areas, corridors, hospitality spaces, retail zones, and other ambient lighting applications.

RESOURCES AND DOWNLOADS

Lotus Tangra 3" Fixed Square Deep Regressed Wide Trim Spec Sheet

Details

Beam Angle:	20°\|24°\|36°\|50°
CRI:	98
Certifications:	ETL Listed, FCC
Color Temperature:	3000K
Dimming Type:	0-10V\|Phase
Driver Type:	Fixed Output
Efficacy (lm/W):	107
Form Factor:	Square
IC Rated:	true
IP Rating:	IP54
Light Source:	Integrated LED
Lumen Output:	1600
Max Ambient Temperature:	45°C
Output Current:	350mA
Output Voltage Range:	20-40VDC
Rated Life (70 Hours):	50000
Ships From:	NJ, WA
Special Features:	Power Selectable
Voltage:	120V\|120-347V
Warranty (Years):	5
Wattage:	11W\|15W
Wet Rated:	true
