Lotus Tangra 3" Fixed Square Deep Regressed Wide Trim, 5CCT, CRI98

By Lotus LED Lights

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

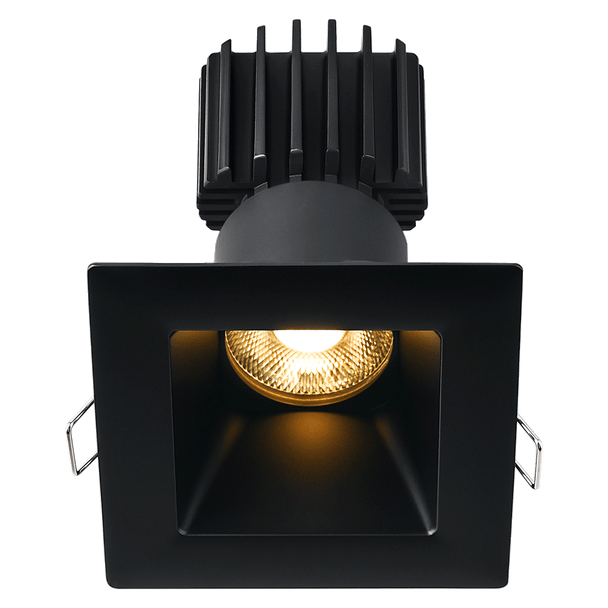

Lotus Tangra 3" Fixed Square Deep Regressed Wide Trim, 5CCT, CRI98

$128.90
  • SKU: LLL-L3F-SDW-5C98
  • MPN: L3F-SDW-5C98

Quick Overview

3" fixed square deep regressed LED downlight, 5CCT selectable output, CRI98, and up to 1600 lumens. Features minimal glare optics, wet location IP54 rating, and IC airtight plenum-rated construction.

ETL Listed
WET RATED
IC RATED
WARRANTY 5 YEARS
IP54
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Lotus Tangra L3F-SDW is a premium 3" fixed square deep regressed downlight engineered for high-end ambient and general lighting. Built in Canada with a solid cast aluminum body and advanced optics, it delivers excellent visual comfort and color quality for demanding residential and commercial spaces. Its modular platform supports flexible driver and beam configurations for tailored performance.

Key Features and Benefits

  • Ultra-high color quality with CRI98 and 5CCT selection for accurate, vibrant illumination
  • Deep regressed, minimal-glare optical design improves visual comfort in finished interiors
  • Rugged cast aluminum construction with refined trim options for architectural applications
  • Certified for challenging installs: cETLus listed, FCC compliant, Type IC, Air Tight, Open Plenum, and Wet Location IP54
  • Long-term reliability backed by Lotus lifetime line support plus 5-year warranty coverage

Specifications

  • Lumen Output: 1600
  • Wattage: 11W|15W
  • Voltage: 120V|120-347V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: 98
  • Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
  • Dimming Type: Phase|0-10V
  • Beam Angle: 20°|24°|36°|50°
  • Input (Fixture): 20-40V DC Max 350mA constant current
  • Rated Life (L70): 50000
  • Max Ambient Temperature: 113°F (45°C)
  • IP Rating: IP54

Common Uses

Ideal for residential and commercial ambient lighting, including living spaces, corridors, hospitality interiors, retail displays, and other architectural ceilings where low glare, high CRI, and compact 3" recessed performance are required.
