Description

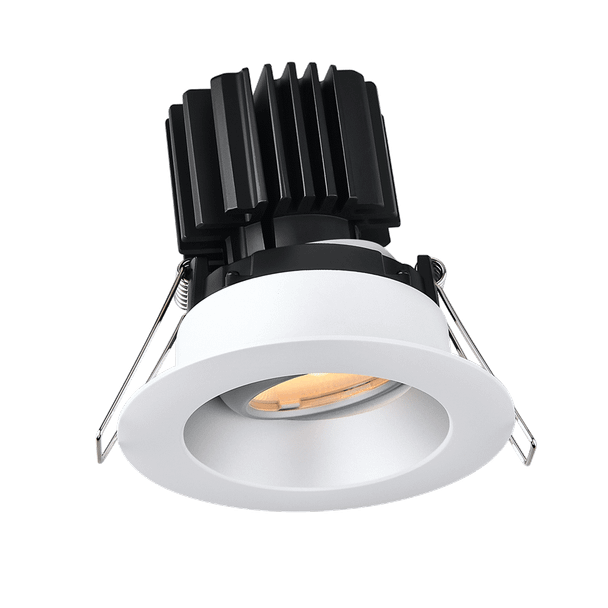

The Lotus LED Tangra L3G-RRW series is a premium 3" gimbal round recessed fixture designed for precision accent and task lighting. Built with a solid cast aluminum body and advanced optics, it delivers high visual comfort and excellent color quality for residential and commercial interiors. Its modular platform supports multiple beam, trim, and driver configurations for flexible project design.

Key Features and Benefits

High-performance output up to 1600 lumens with selectable 11W or 15W operation
Precision aiming with 20° tilt and full 360° rotation for sloped ceilings and wall washing
Multiple dimming platform compatibility including Triac and 0-10V driver options
Certified for demanding installs with cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location IP54 compliance
Long-term reliability backed by a lifetime line-support warranty plus 5 years

Specifications

Lumen Output: up to 1600
Wattage: 11W/15W selectable
Voltage: 120V AC (Triac driver) or 120-347V AC (0-10V driver)
Color Temperature: 3000K (this configuration)
CRI: 98
Beam Angle: 20°|24°|36°|50°|60° (series options)
Fixture Input: 20-40V DC, max 350mA constant current
Rated Life: 50,000 hours at 70% lumen maintenance
Ambient Temperature: -40°F (-40°C) to +113°F (+45°C)
IP Rating: IP54

Common Uses

Ideal for task lighting, sloped ceilings up to 20°, and wall washing in residential, hospitality, retail, and commercial spaces where directional control and high-CRI illumination are required.

RESOURCES AND DOWNLOADS

Lotus LED Tangra 3" Gimbal Round Recessed Wide Trim Spec Sheet

Details

Beam Angle:	20°\|24°\|36°\|50°\|60°
CRI:	98
Certifications:	ETL Listed, FCC
Color Temperature:	3000K
Dimming Type:	0-10V\|Phase
Distribution Type:	Direct
Driver Type:	Fixed Output
Efficacy (lm/W):	107
Form Factor:	Round
Housing Material:	Cast Aluminum
IC Rated:	true
IP Rating:	IP54
Light Source:	Integrated LED
Lumen Output:	1600
Max Ambient Temperature:	45°C
Output Current:	350mA
Output Voltage Range:	20-40V
Primary Material:	Cast Aluminum
Rated Life (70 Hours):	50000
Special Features:	Power Selectable
Voltage:	120V\|120-347V
Warranty (Years):	5
Wattage:	11W\|15W
Wet Rated:	true
