Description

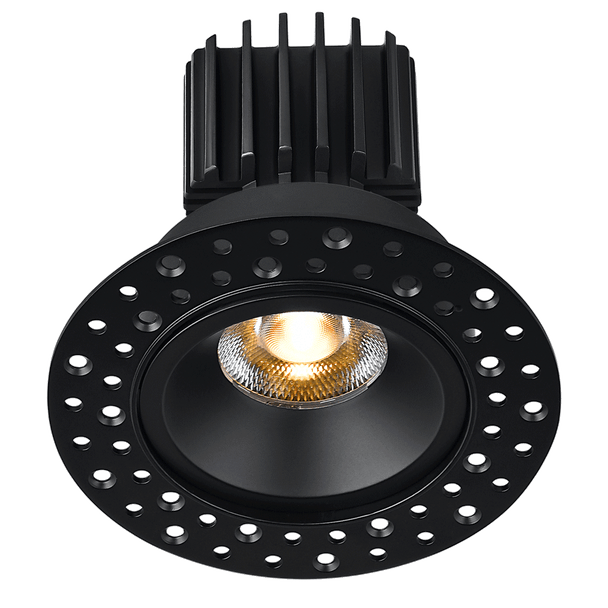

The Lotus LED Tangra 3" Fixed Round Recessed Invisible Trim is a premium architectural downlight designed for clean, trimless ceilings and high-quality illumination. Built in Canada with a solid cast aluminum body and advanced optics, this fixture is part of Lotus’s modular Tangra lineup for flexible commercial and residential lighting designs.

Key Features and Benefits

Trimless 3" recessed form creates a sleek, nearly invisible ceiling appearance for modern interiors.
High color quality CRI98 LED option at 3000K delivers rich, accurate color rendering for refined spaces.
Supports selectable 11W/15W Lotus drivers, allowing output tuning up to 1600 lumens depending on configuration.
Certified cETLus and FCC compliant, with Type IC, Airtight, Open Plenum, and Wet Location IP54 ratings for versatile code-friendly installs.
Backed by Lotus long-term warranty coverage (manufactured line life plus 5 years) for dependable performance.

Specifications

Lumen Output: up to 1600
Wattage: 11W|15W (driver selectable)
Voltage: 120V|120-347V (driver dependent)
Dimming Type: Phase|0-10V (driver dependent)
Beam Angle: 20°|24°|36°|50°|60°
Color Temperature: 3000K
Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
CRI: 98
Input: 20-40V DC, max 350mA constant current
Max Ambient Temperature: -40°C to +45°C
Rated Life (L70): 50000 hours (70% lumen maintenance)
Cutout: 3 1/4"
Ceiling Space Required for Driver: 4"

Common Uses

Ideal for upscale residential, hospitality, retail, and commercial interiors requiring reduced glare and precise accent or ambient illumination. Commonly used in living areas, corridors, boutique spaces, and other wet-location-capable recessed applications.

RESOURCES AND DOWNLOADS

Lotus LED Tangra 3" Fixed Round Recessed Invisible Trim Spec Sheet

Details

Beam Angle:	20°\|24°\|36°\|50°\|60°
CRI:	98
Certifications:	ETL Listed, FCC
Color Temperature:	3000K
Dimming Type:	Phase\|0-10V
Efficacy (lm/W):	145
Form Factor:	Round
IC Rated:	true
IP Rating:	IP54
Light Source:	Integrated LED
Lumen Output:	1600
Max Ambient Temperature:	-40°C to +45°C
Output Current:	350mA
Output Voltage Range:	20-40VDC
Rated Life (70 Hours):	50000
Ships From:	NJ, WA
Special Features:	Power Selectable
Voltage:	120V\|120-347V
Wattage:	11W\|15W
Wet Rated:	true
