Description

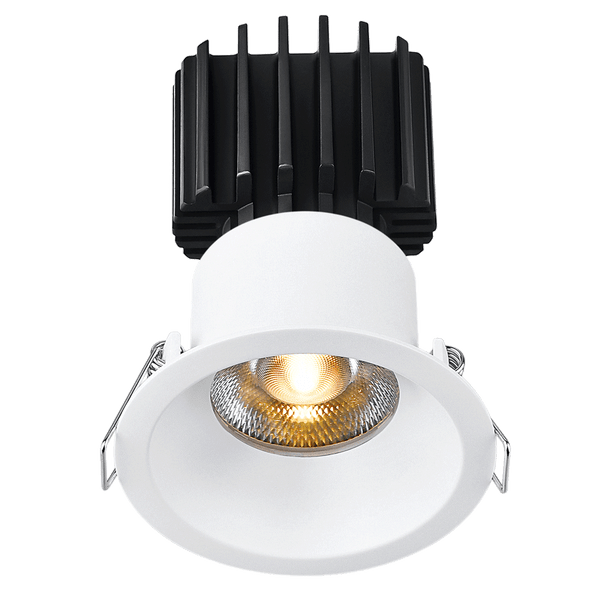

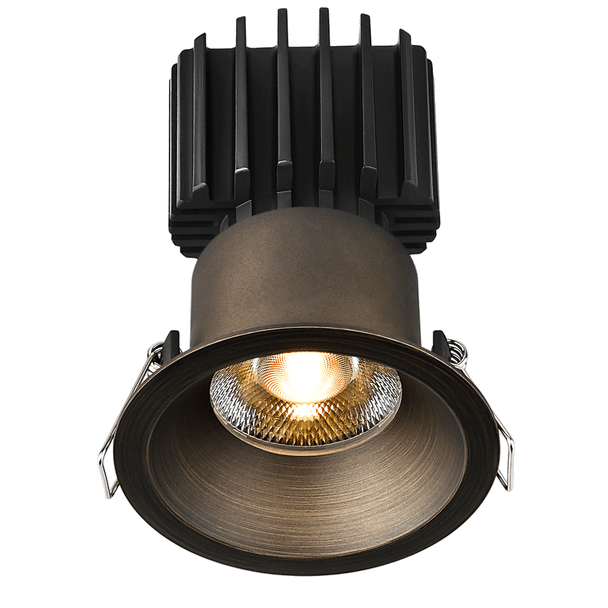

The Lotus Tangra L3F-RRT series is a premium 3" fixed round recessed thin-trim fixture designed for high-end ambient and general lighting. Built in Canada with a solid cast aluminum body and advanced optics, it delivers refined aesthetics and strong visual comfort. Its modular platform supports multiple LED, beam, trim, and driver configurations for project-level flexibility.

Key Features and Benefits

Architectural thin-trim design with reduced glare for a near-trimless ceiling appearance
High-performance output up to 1600 lumens with selectable 11W/15W operation (with compatible Tangra driver)
Multiple optical distributions (20°, 24°, 36°, 50°, 60°) to match accent or general illumination needs
Certified for demanding installs: cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location IP54
Long-term reliability backed by Lotus lifetime line support plus 5-year warranty coverage

Specifications

Lumen Output: up to 1600
Wattage: 11W/15W selectable
Voltage: 120V (Triac driver option) | 120-347V (0-10V driver option)
Color Temperature: 3000K (this configuration)
CRI: 98
Beam Angle: 20° | 24° | 36° | 50° | 60°
Dimming: Triac (phase cut) or 0-10V depending on selected driver
Input to Fixture: 20-40V DC, max 350mA constant current
Max Ambient Temperature: -40°F to +113°F (-40°C to +45°C)
Rated Life: 70% light output at 50,000 hours
IP Rating: IP54

Common Uses

Ideal for residential and commercial interiors requiring compact, high-quality recessed lighting, including living spaces, corridors, hospitality areas, retail zones, and other locations where low-glare performance and clean ceiling integration are important.

RESOURCES AND DOWNLOADS

Lotus Tangra 3" Fixed Round Recessed Thin Trim Spec Sheet

Details

Beam Angle:	20°\|24°\|36°\|50°\|60°
CRI:	98
Certifications:	ETL Listed, FCC
Color Temperature:	3000K
Dimming Type:	0-10V\|Phase
Form Factor:	Round
IC Rated:	true
IP Rating:	IP54
Light Source:	Integrated LED
Lumen Output:	1600
Max Ambient Temperature:	113°F
Output Current:	350mA
Output Voltage Range:	20-40V
Rated Life (70 Hours):	50000
Ships From:	NJ, WA
Special Features:	Power Selectable
Voltage:	120V\|120-347V
Warranty (Years):	5
Wattage:	11W\|15W
Wet Rated:	true
