RXL33 series recessed exit sign, single face, clear acrylic faceplate, completely self-contained, fully automatic operation, 90 minutes of illumination in case of power failure.
When normal utility power fails, the internal solid-state transfer switch automatically connects the internal battery to the LED lamps, lighting a path of egress for no less than 90 minutes. When utility power is restored the battery is recharged by the onboard solid-state recharger. Full recharge is accomplished within 24 hours.
DESIGN FEATURES
CONSTRUCTION
- High impact-flame retardant thermoplastic faceplate
- Clear acrylic faceplate
- Recessed, low-profile design
- Completely self-contained
- Fully automatic operation
ELECTRICAL
- 120/277V
- Operating temperature: 10°C (50°F) to 40°C (104°F)
- Contains 4.8V Ni-cd rechargeable battery
- Automatic, low voltage disconnect protects battery from deep discharge
- Energy consumption of less than 5 watts
- Estimated 25 year LED lamp life
- 90 minutes of illumination in case of power failure
INSTALLATION
- Included bar hanger allow the recessed housing to be positioned at any point within a 24” joist span
- Exit panel will pivot up to 90º for recessed wall or sloped ceiling installation
- Removable directional indicators included
- Easy, one-person installation

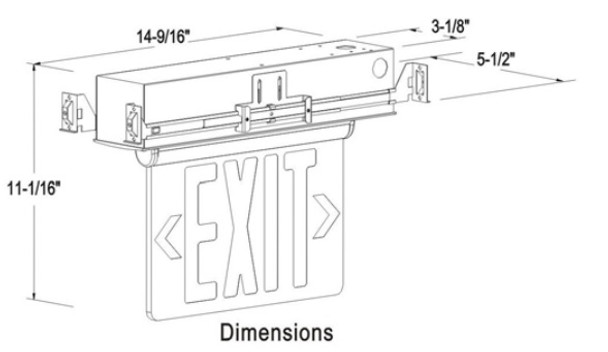

DIMENSIONS (W x D x H)
14-9/16” x 3-1/8” x 7-13/16”

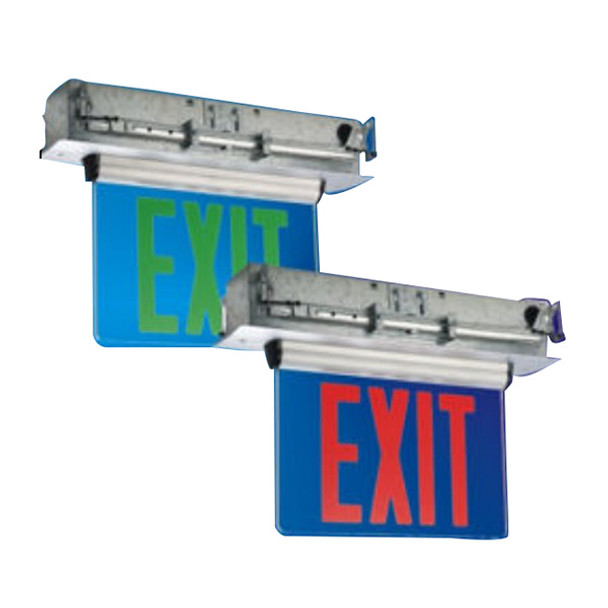

FINISH
- Red with white housing
- Red with brushed aluminum housing
- Green with white housing
- Green with brushed aluminum housing
CERTIFICATIONS
- ETL listed for damp location
- 5 year limited warranty
RESOURCES AND DOWNLOADS
| SKU | RP-RXL33 |
|---|---|
| Weight | 8.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Driver Type | 120/277V |
