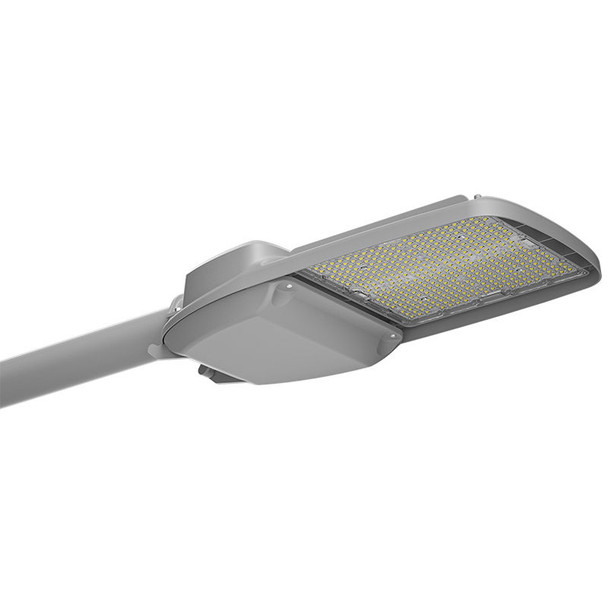

STL4 Series Outdoor Light, 80W/100W/150W/200W, 4000K, 480V

This outdoor lighting fixture is part of the STL4 Series by Westgate Manufacturing, offering versatile and powerful illumination for various applications. With selectable wattage and color temperature, it provides optimal lighting solutions for general site lighting, street, roadway, alleys, loading docks, doorways, pathways, and parking areas.

Key Features and Benefits

• Selectable wattage: 80W, 100W, 150W, 200W
• High light transmittance optical TYPE III lens
• Anti-UV and flame-resistant PC lens
• 0-10V dimming capability
• Driver located in isolated compartment for improved thermal management
• High efficacy: 140LM/W
• Color temperatures: 3000K, 4000K, 5000K
• Color Rendering Index (CRI) ≥ 70
• Rated life: 70,000 hours
• 7-year warranty
• Light grey powder coat finish
• IP65 rating, suitable for wet locations
• 10KV lightning surge protection
• With NEMA twist-lock photocell socket (shorting cap included)
• Die-cast aluminum construction
• Maximum ambient temperature: 104°F
• Country of origin: China

Specifications

• Voltage: 480V, 60Hz AC
• Power factor: >0.95
• Wattage: 80W, 100W, 150W, 200W
• Total lumens: Up to 28000LM
• Efficacy: 140LM/W
• Color temperatures: 3000K, 4000K, 5000K
• CRI: ≥ 70
• Rated life: 70,000 hours
• IP rating: IP65
• Dimensions: 9 1/4" (H) x 23 1/4" (W) x 4 3/4" (D)

Common Uses

Ideal for general site lighting, street, roadway, alleys, loading docks, doorways, pathways, and parking areas.
