Name: STL4 Series Outdoor Lighting, 50W-150W, 4000K
Brand: Westgate Manufacturing
SKU: WM-STL4-50-150W-40K
Price: 401.3 USD
Availability: InStock

Description

Details

Warranty

Delivery & Returns

Description

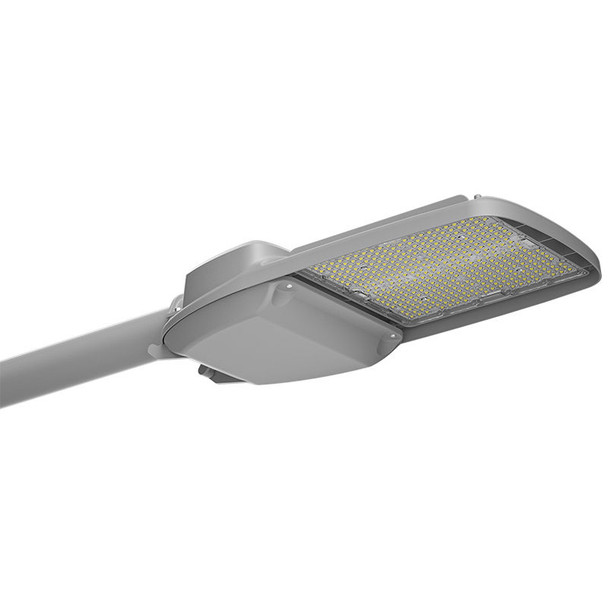

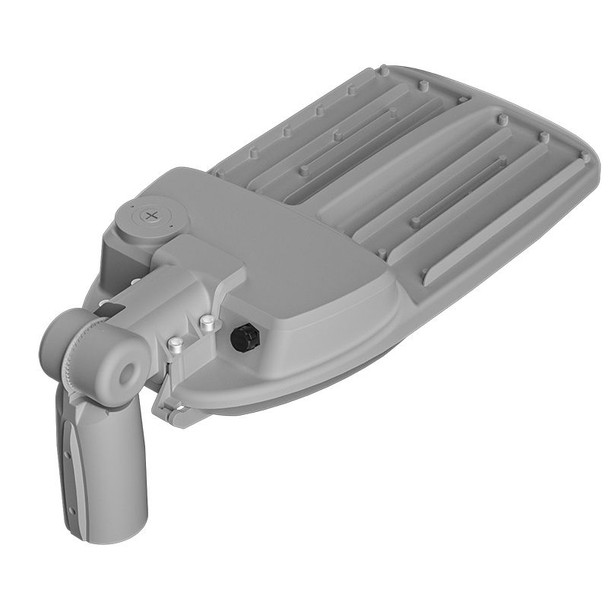

STL4 Series Outdoor Lighting by Westgate Manufacturing

Experience unparalleled outdoor illumination with the STL4 Series from Westgate Manufacturing. This versatile and highly efficient lighting solution is engineered to meet the diverse demands of outdoor lighting applications. Transform your outdoor spaces with selectable wattages and optimal color temperatures for superior lighting.

Key Features and Benefits

Selectable Wattages: Choose from 50W, 80W, 100W, and 150W for tailored lighting solutions.
Optimal Color Temperature: A balanced 4000K color temperature to deliver efficient, natural lighting.
High Efficacy: Superior lighting performance with 140 lumens per watt.
Dimming Capability: Fully compatible with 0-10V dimming systems for customizable brightness.
Durable Construction: Built with die-cast aluminum and a resilient powder coat finish.
Safety Features: Includes 10KV lightning surge protection and an IP65 rating for wet locations.
Extended Warranty: Enjoy peace of mind with a comprehensive 7-year warranty.
Advanced Lens: Features an anti-UV and flame-resistant PC lens.

Technical Specifications

Voltage: 120-277V; 60Hz AC
Power Factor: Greater than 0.95
Rated Life: 70,000 hours of reliable lighting
Total Lumens: Up to 21,000 lumens
Color Rendering Index (CRI): ≥ 70

Common Uses

This fixture is ideal for general site lighting, street and roadway illumination, alleys, loading docks, doorways, pathways, and parking areas, making it a versatile choice for any outdoor lighting need.

RESOURCES AND DOWNLOADS

STL4 Series Outdoor Lighting Spec Sheet

Westgate Resources and Downloads

Spec Sheet

Details

Beam Angle:	140° x 80°
CRI:	70
Color Temperature:	4000K
Compliance & Warranty:	7 Year Warranty\|UL Listed
Country of Origin:	CHINA
Dimming Type:	0-10V
Efficacy:	145LM/W
Finish / Color:	Gray
Housing Material:	Aluminum
IP Rating:	IP65
Item Height (Inch):	4.72
Item Length (Inch):	23.22
Item Weight (LBS):	9.82
Item Width (Inch):	12.30
L70 Expected Life (hours):	70,000hr\|70000
Lumen Output:	21000\|7250\|11600\|14500\|21750
Operating Temperature:	-40°F to 104°F
Power Factor:	0.9
Ships From:	CA
Special Features:	Selectable Wattage\|Selectable Lumen Output
THD:	<20%
Voltage:	120-277V
Wattage:	50W\|80W\|100W\|150W
