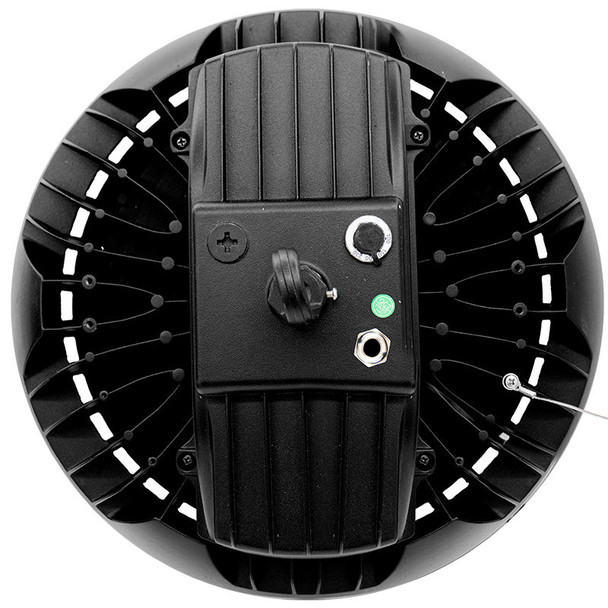

The UHX Series 230W LED light offers a versatile lighting solution with selectable color temperatures and adjustable lumen outputs. It's designed for wet locations and is ideal for various applications including general site lighting, alleys, loading docks, doorways, pathways, parking areas, warehouses, and storage buildings.
Key Features and Benefits
- Waterproof design, suitable for wet locations
- ADC12 aluminum heat sink with outdoor powder coating finish
- Selectable color temperatures: 3000K, 4000K, 5000K, 5700K
- Adjustable lumen outputs: 13000LM, 19500LM, 26000LM, 29900LM
- High efficacy of 130 LPW
- Long lifespan of 50,000 hours
- IP65 rating
- Power factor >0.9
- 0-10V dimming capability
- Multiple mounting options and accessories available
Specifications
- Input wattage: 100W/150W/200W/230W
- Input voltage: 120-277V AC 50/60Hz
- Color rendering index: >80
- Beam angle: 110°
- Operating temperature: -40°F to 122°F
- Optical lens: PC materials with high light transmittance, anti-UV, and fire-resistant
- Twist-lock Zhaga socket pre-installed
- 3’ SJTW 18,3 AWG power cable and 6’ SJTW dimming cable
- LED type: LUMILEDS 2835
- LED PCB board: High conductive, waterproof, aging resistance, and salt mist resistance
Common Uses
Ideal for general site lighting, alleys, loading docks, doorways, pathways, parking areas, warehouses, and storage buildings.
RESOURCES AND DOWNLOADS
SKU | WM-UHX-230W-MCTP-SR |
---|---|
Weight | 10.00 LBS |
