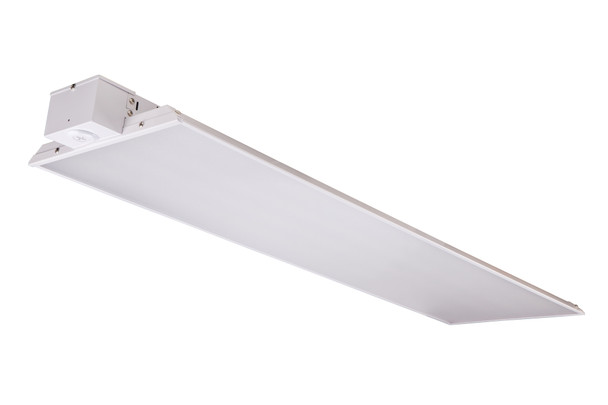

The VERSATILE LINEAR HIGH BAY, 240W offers a blend of traditional design and modern technology, providing excellent illumination for various high bay applications with selectable color temperature and adjustable lumen outputs.
Key Features and Benefits
- Power & Color Select Technology for simplified SKU management and field customization.
- Selectable power settings: 240/220/200/180W.
- Selectable CCT settings: 4000K and 5000K.
- Full spectrum input voltage: 120-347V.
- Wide range of lumen packages (36,000/33,000/30,000/27,000 lm).
- Diffused polycarbonate lens for reduced glare.
- Heavy gauge steel housing and impact resistant lens.
- Technical performance: CRI >80, efficacy up to 150 LPW, L70 at >100,000 hours, THD <20%, Power Factor >0.9.
- Surge protection: 6kV included.
- DesignLights Consortium® (DLC) Premium listed.
Specifications
- Wattage: 240W (adjustable to 220/200/180W).
- Lumen Output: 36,000/33,000/30,000/27,000 lm.
- Color Temperature: 4000K/5000K (Field Color Selectable).
- Input Voltage: 120-347V.
- CRI: >80.
Common Uses
Ideal for warehouses, distribution centers, grocery stores, gymnasiums, data centers, manufacturing plants, cold storage, big box retail, indoor recreational facilities, and vehicle maintenance facilities.
RESOURCES AND DOWNLOADS
| SKU | E-LHS1-PS240-8FCCT-HDIM |
|---|---|
| Weight | 16.00 LBS |
| Lumen Output | 36,000/33,000/30,000/27,000 |
| Total Input Watts | 240W (adjustable to 220/200/180W) |
| Voltage | 120-347V |
| Color Temperature (CCT) | 4000K/5000K |
| Color Rendering Index (CRI) | >80 |
