Description

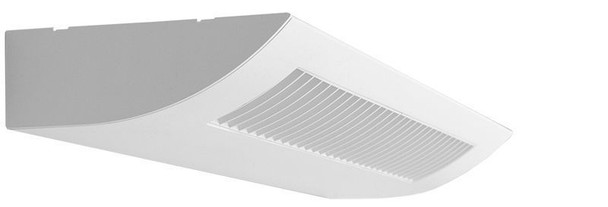

Upgrade your lighting with the WCLP series LED louver wall lights, perfect for enhancing any environment with optimum efficiency and versatility. This 2ft. up/down LED fixture consumes just 25 watts while delivering an impressive 2,750 lumens. Featuring selectable color temperatures (3000K, 4000K, 5000K), it adapts seamlessly to various ambiance needs. Rated for up to 50,000 hours and backed by a 5-year limited warranty, this light promises both longevity and reliability.

FEATURES

Lens: Louver Lens for optimal light distribution
Housing: Durable Anodized Aluminum construction
Warranty: 5-Year Limited Warranty
MCT: Multi Color Temperature adjustable via internal switch

ELECTRICAL

Voltage: 120-277VAC 60Hz, compatible with various power systems
Wattage: Energy-saving 25W
Power Factor: >0.95 for maximum efficiency
Efficacy: 110 Lumens per Watt (LPW)
THD: <20% for reliable performance

MECHANICAL

Housing: Sturdy Anodized Aluminum with Powder Coated White finish
Polycarbonate End Caps for added durability
Ambient Temperature Range: -22°F to +104°F, suitable for various environments
5-year Warranty for peace of mind

LIGHTING

Lens: High-performance Louver Lens
LED Chips: High quality for efficiency, heat dissipation, stability, and lumen maintenance
Dimming: 0~10V dimmable capability
Multi Color Temperature: Adjustable (3000K / 4000K / 5000K)
Lumens: High output of 2,750 Lumens
CRI: Color Rendering Index of ≥ 80 for true-to-life color
Rated Life: Long-lasting 50,000 Hours

APPLICATIONS

Ideal for storage rooms
Perfect for offices
Great for conference rooms
Suitable for retail spaces
Enhances reception areas
Excellent for hallways
Optimal for educational facilities

RESOURCES AND DOWNLOADS

WCLP Series 25 Watt LED Louver Wall Light, CCT Adjustable Spec Sheet

Light Source:	LED
Fixture Size:	Other
Color Rendering Index (CRI):	>80
Driver Type:	120-277VAC
Lumen Output:	2750lm
L70 Expected Life (hours):	50,000
Color Temperature (CCT):	MCT
Total Input Watts:	10W
Total Input Watts:	25W
Lumen Output:	2750
Color Temperature (CCT):	3000K
Color Temperature (CCT):	4000K
Color Temperature (CCT):	5000K
Voltage:	120-277V
Primary Material:	Anodized Aluminum
Finish Options:	White
Dimming Options:	0-10V
Power Factor:	>0.95
Operating Temperature:	-22°F to 104°F
LED Type:	LED
Lens Material:	Louver Lens
Manufacturer's Warranty:	5 YEARS
Listings and Ratings:	UL
BUG Rating:	B1-U5-G1
Country of Origin:	China
Item Weight (LBS):	9.37
Item Length (Inch):	27.7
Item Width (Inch):	7.2
Item Height (Inch):	2.4
Special Features:	Color Temperature Selectable

Westgate Manufacturing

WCLP Series 2Ft. 25 Watt (Up/Down) Louver LED Wall Light

WCLP Series 2Ft. 25 Watt (Up/Down) Louver LED Wall Light
