Description

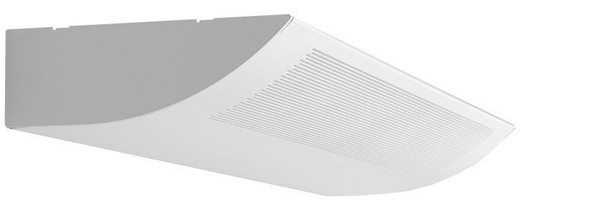

Illuminate your spaces with the advanced WCPL series 2ft. LED perforated wall lights (up/down) from Relight Depot. Designed to deliver exceptional performance, each unit consumes only 25 watts of power while delivering a robust 2,750 lumens. With CCT adjustable settings of 3000K, 4000K, or 5000K, you can tailor the lighting to suit your preferences. Offering up to 50,000 hours of illumination, this lighting solution is both durable and efficient, complemented by a 5-year limited warranty for peace of mind.

Key Features

Lens: Perforated Lens for a contemporary look
Housing: Made from anodized aluminum for enhanced durability
Warranty: 5-year limited warranty
MCT: Multi Color Temperature selectable switch located inside the fixture

Electrical Specifications

Voltage: 120-277VAC 60Hz
Wattage: 25W
Power Factor: >0.95
Efficacy: 110 lumens per watt
THD: <20%

Mechanical Specifications

Housing: Anodized aluminum
End Caps: Polycarbonate for added protection
Finish: Powder-coated white for a clean aesthetic
Operating Temperature: -22°F to +104°F
LED Chips: High efficiency, heat dissipation, stability, and lumen maintenance
Dimming: 0–10V dimmable
Color Temperatures: 3000K, 4000K, 5000K
CRI: ≥ 80 for accurate color rendering
Rated Life: 50,000 hours

Ideal Applications

Storage rooms
Offices
Conference rooms
Retail areas
Reception areas
Hallways
Educational facilities

RESOURCES AND DOWNLOADS

WCPL Series 25 Watt LED Perforated Wall Lights 2-Feet Spec Sheet

Westgate Resources and Downloads

Details

BUG Rating:	B0-U5-G1
CRI:	80
Color Temperature:	3000K\|4000K\|5000K
Compliance & Warranty:	5 Year Warranty\|UL Listed
Country of Origin:	CHINA
Dimming Type:	0-10V
Driver Type:	120-277V
Finish / Color:	White
Fixture Size:	Other
Housing Material:	Aluminum
Item Height (Inch):	2.36
Item Length (Inch):	27.64
Item Weight (LBS):	9.37
Item Width (Inch):	7.2
L70 Expected Life (hours):	50,000hr
LED Type:	LED
Lens Material:	Perforated Lens
Light Source:	LED
Lumen Output:	2750
Operating Temperature:	-22°F to 104°F
Power Factor:	>0.95
Ships From:	CA
Special Features:	Selectable CCT
Voltage:	120-277V
Wattage:	25W
