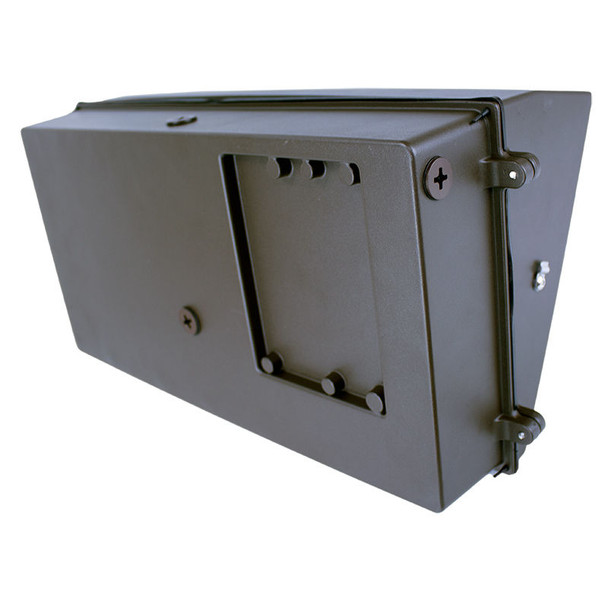

Westgate WMXE Series Traditional Wall Pack with Emergency Backup - Superior Outdoor Lighting

The Westgate WMXE Series Traditional Wall Pack with Emergency Backup is a top-tier, energy-efficient lighting solution designed for a variety of outdoor applications. Renowned for its robustness and versatility, this wall pack guarantees optimal lighting performance in any environment.

Key Features and Benefits

Multi-CCT selectable color temperature (3000K, 4000K, 5000K) for adaptable ambiance
Adjustable lumen output options: 14000LM, 16800LM, and 21000LM
Superior efficacy at 140 lumens per watt (LPW)
Extended lifespan rated at 70,000 hours
0-10V dimming capability for customizable brightness
Built-in emergency backup ensures safety during power outages
Durable construction featuring a prismatic borosilicate glass lens and ADC12 aluminum heat sink with outdoor powder coating
IP65 rating, making it ideal for wet locations
Comprehensive 7-year warranty

Specifications

Input Wattage: 100/120/150W for scalable power needs
Input Voltage: 120-277V AC 50/60Hz for wide range compatibility
Power Factor: >0.9 ensuring high efficiency
Operating Temperature: -40°F ~ 104°F suitable for diverse climates

Common Applications

Perfect for general site lighting, alleys, loading docks, doorways, pathways, and parking areas. Ideal for replacing existing HID wall packs and compatible with photocells.

RESOURCES AND DOWNLOADS

Traditional Wall Pack MCT Spec Sheet

Westgate Resources and Downloads

Details

Beam Angle:	120°
CRI:	70
Color Temperature:	3000K\|4000K\|5000K
Compliance & Warranty:	7 Year Warranty\|DLC Premium\|UL Listed
Country of Origin:	CHINA
Dimming Type:	0-10V
Efficacy:	140LM/W
Finish / Color:	Bronze
Housing Material:	Aluminum
IP Rating:	IP65
Item Height (Inch):	10.236220488
Item Length (Inch):	20.078740188
Item Weight (LBS):	16.29657040704
Item Width (Inch):	11.417322852
L70 Expected Life (hours):	50,000hr
LED Type:	Philips Lumileds LEDs
Lens Material:	Glass Lens
Lumen Output:	21000\|14000\|16800
Operating Temperature:	-40°F to 104°F
Power Factor:	>0.90
Ships From:	CA
Special Features:	Photocell Included\|Emergency Battery Included\|Selectable Wattage\|Selectable CCT\|Selectable Lumen Output
THD:	<20%
Voltage:	120-277V
Wattage:	100W\|120W\|150W
