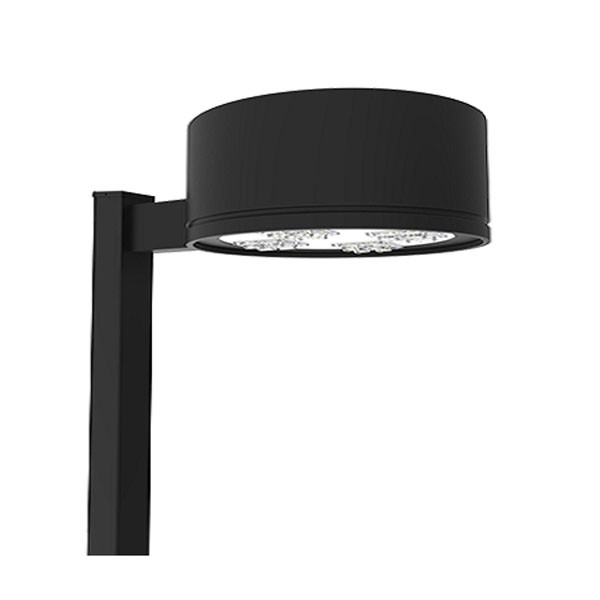

Decorative cylinder area light, 120 watts, 19,200 lumens, available in 3000K, 4000K or 5000K color temperature (CCT), 10 years limited warranty for complete fixture.
GENERAL DESCRIPTION
- The EX-LITE DCAL is an architectural decorative area light fixture that built with our industry-leading high performance LED light engine.
CONSTRUCTION
- Stylish decorative look
- Heavy-gauge spun aluminum housing
- Corrosion resistant polyester powder coat finish, available in many finish colors
MOUNTING
- Pole mount, wall mount & post-top mount.
ELECTRICAL
- High Power Factor, low THD UL listed driver with 10KV surge protection.
- Universal line voltage input 120-277V, 347/480V optional
- FCC compliant
- 0-10V dimmable optional
OPTICAL
- IES Type III, Type IV and Type V distribution patterns
- Optics are interchangeable and easily replaceable
- Full range CCT from 3000K to 5000K
CONTROLS
- NEMA twist lock photocontrol and receptacle
- Bi-Level occupancy sensor with wireless App control
WORKING TEMPERATURE
- Up to 140F
WARRANTY
- 10 years’ warranty for complete fixture
LISTINGS
- DLC Pending
- RoHs
- IP65
SPECIFICATIONS
- Wattage: 120W
- Lumens: 19,200Lm
- Efficacy: 160lm/W
- CCT: 3000K | 4000K | 5000K
- CRI: 75+
- Color: Bronze (Std) | Black | White | Gray
- Input Voltage: 120-277, Std | HV = 347-480V
RESOURCES AND DOWNLOADS
| SKU | EX-DCAL-120W |
|---|---|
| Weight | 20.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Color Rendering Index (CRI) | 75+ |
| Driver Type | 120-277V | 347/480V |
| Luminaire Efficacy Rating (LER) | 160lm/W |
| Lumen Output | 19,200lm |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Total Input Watts | 120W |
