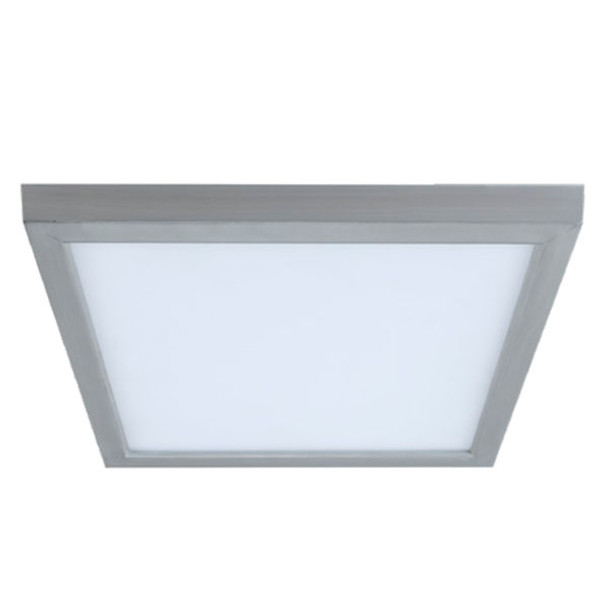

15-inch square ceiling mount, 30 watts, 1,776 lumens, available in 3000K or 4000K color temperature (CCT), up to 50,000 hours projected life, 5 years limited warranty.
This low-profile large square has a thin design that is Energy Star listed and CEC JA8 compliant that can be used in many applications such as hallways and cooridors with low ceiling heights.
CONSTRUCTION
- Steel housing with acrylic diffuser
- Low-profile 1.25" height
ELECTRICAL
- 120V - 60Hz AC
- Dimmable TRIAC, 10-100%
- Beam angle: 120º
- 50,000 hour projected life
- 3000K or 4000K | 90 CRI
- 4328-1: 11" Square | 15W | 988 lms (delivered)
- 4329-1: 13" Square | 20W | 1199 lms (delivered)
- 4330-1: 15" Square | 30W | 1776 lms (delivered)
INSTALLATION
- Included Mounting Bracket: Accommodates 3” or
- 4” J-Box applications
CERTIFICATIONS
- ETL Listed for damp location
- Energy Star Listed
- CEC JA8 Compliant
- LED Lamps: 5 Year Limited Warranty
- Other Components: 1 Year Limited Warranty
| SKU | RP-4330-1 |
|---|---|
| Weight | 8.00 LBS |
| Light Source | LED |
| Total Input Watts | 30W |
| Fixture Size | 15" x 15" x 1-1/4" |
| Lumen Output | 1776lm |
| L70 Expected Life (hours) | 50,000hrs |
| Luminaire Efficacy Rating (LER) | - |
| Color Temperature (CCT) | 3000K/4000K |
| Color Rendering Index (CRI) | 90CRI |
| Max Ambient Temp | - |
| Driver Type | 120V - 60Hz AC |
