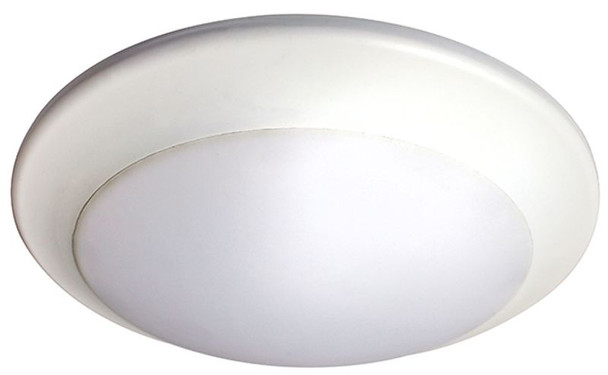

Name: 6in DIE-CAST Disk 15W 900LM 277V CRI80 30/40/50K
Brand: Westgate Manufacturing
SKU: WM-DLS6-MCT-277V
Price: 29.85 USD
Availability: InStock

Description

Details

Warranty

Delivery & Returns

Description

15 Watt High Performance Specs Series Disk Light, 277V

Introducing the WM-DLS6-MCT-277V 6-inch Disk Light, a high-performance, energy-efficient lighting solution perfect for both residential and commercial settings. This versatile light, with a sleek white finish, delivers up to 1000 lumens using only 15 watts of power. Its adjustable color temperature (3000K, 4000K, 5000K) makes it suitable for various environments, from cozy closets to bustling corridors.

Outstanding Features

Durable Die-cast Aluminum with a Powder-Coated Finish
Innovative Driver on Board (DOB) LED Board Protected by Clear PC Cover
Closed Cell Neoprene Foam Gasket for Enhanced Sealing
Selectable Multi CCT via a Switch on the LED Board

Electrical Specifications

Voltage: 277V AC
Power Factor: >0.90
Wattage: 15W
Efficacy: 67 LPW

Mechanical Specifications

Sleek White Finish
Constructed from Sturdy Die-cast Aluminum
Closed Cell Neoprene Foam Gasket for Optimal Sealing
Compatible with 4" or 3" Octagonal Electrical Boxes
Includes a Recessed Mounting Kit for Easy Installation
Maximum Ambient Temperature: 104°F (40°C)
Rated Life: Up to 50,000 Hours

Lighting Performance

White Translucent Acrylic Lens
High-Efficiency DOB LED Board with Clear PC Cover
Total Lumens: 1000LM
Adjustable Color Temperature (3000K/4000K/5000K)
CRI: ≥ 90
5-Year Warranty

Ideal Applications

Our disk lights are designed to offer flexibility for retrofit and new construction projects, ideal for diverse spaces such as closets, storage areas, attics, corridors, or any general lighting needs in both residential and commercial settings.

Resources and Downloads

15 Watt High Performance Specs Series Disk Light Spec Sheet

Westgate Resources and Downloads

Details

BUG Rating:	B1-U2-G1
CRI:	80
Color Temperature:	3000K\|4000K\|5000K
Compliance & Warranty:	Wet Location\|5 Year Warranty\|ETL Listed
Country of Origin:	INDONESIA
Dimming Type:	Phase
Driver Type:	277V
Finish / Color:	White
Fixture Size:	6"
Housing Material:	Aluminum
Item Height (Inch):	1
Item Length (Inch):	7.3
Item Weight (LBS):	0.83
Item Width (Inch):	7.3
L70 Expected Life (hours):	50,000hr
LED Type:	Unique DOB (Driver On Board)
Lens Material:	White translucent acrylic lens
Light Source:	LED
Lumen Output:	900
Luminaire Efficacy Rating (LER):	67lm/W
Operating Temperature:	104°F MAX
Power Factor:	0.9
Ships From:	CA
Special Features:	Selectable CCT
Wattage:	15W
