1x4 VST Volumetric Selectable Troffer, 3000lm, 21W

By Industrial Lighting Products

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

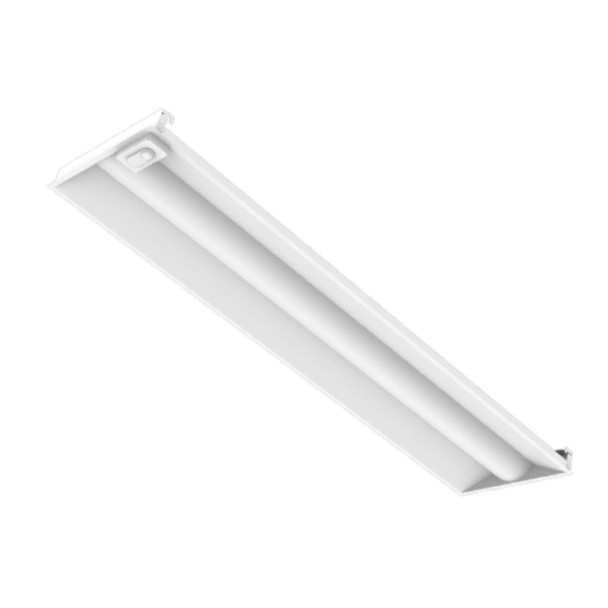

1x4 VST Volumetric Selectable Troffer, 3000lm, 21W

$83.10
  • SKU: ILP-VST14-30L-U-CCTS-G2
  • MPN: VST14-30L-U-CCTS-G2

Quick Overview

ILP VST volumetric selectable troffer delivers 3000 lumens at 21W with 0-10V dimming, 120-277V input, selectable 2700K-5000K CCT, and low-profile 2.1" housing for commercial recessed grid ceiling applications.

ETL Listed
Title 24 Compliant
DAMP RATED
IC RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ILP VST Volumetric Selectable Troffer is a low-profile architectural troffer designed for modern commercial interiors that need efficient, comfortable illumination. As part of ILP’s controls-ready lineup, it combines field-selectable performance with flexible installation options for education, healthcare, office, retail, and storage environments.

Key Features and Benefits

  • Field-selectable lumen and CCT settings simplify stocking and on-site configuration.
  • Ultra-shallow 2.1" housing is ideal for low plenum spaces while maintaining a clean recessed look.
  • 0-10V dimming compatibility (10%-100%) supports energy-saving lighting control strategies.
  • ETL Listed for US and Canadian safety standards, with Type IC suitability and damp-location rating.
  • Backed by a 5-year standard warranty with optional 10-year coverage.

Specifications

  • Lumen Output: 3000
  • Wattage: 21W
  • Voltage: 120-277V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K
  • CRI: 80
  • Power Factor: 0.90
  • Rated Life (L70): 100000
  • Mounting: Recessed in standard 9/16" and 15/16" T-grid ceilings
  • Housing: Steel body with matte white finish
  • Lens: Frosted polycarbonate
  • Ambient Operating Temperature: -20°C to 40°C

Common Uses

Ideal for schools, medical facilities, offices, retail spaces, and storage areas where uniform volumetric light, low glare, and controllable energy performance are required.
