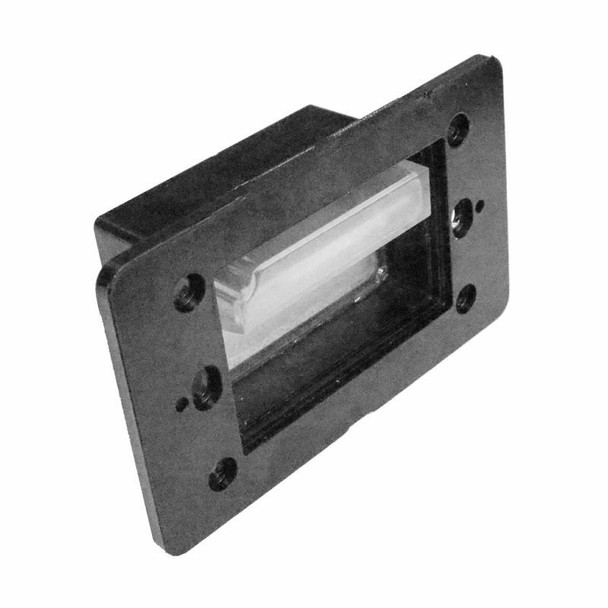

Single-gang step light engine for recessed trim, 2 watts, 86 lumens, available in 2700K, 3000K, 4000K or 5000K color temperature (CCT), suitable for wet locations, 1 year limited warranty.
Ideal for recessed step lighting, walkway and path lighting, courtyard lighting and deck lighting. Optional face plates sold separately.
ELECTRICAL SPECIFICATION
- Voltage: 120VAC
- Wattage: 2W
- efficacy: 43LM?W
HOUSING SPECIFICATION
- PVC housing
- PVC Gasket set for j-box or weatherproof box mounting
- 1FT. STP-2 18AWG lead wire
- Operating Temperature: -40°F~104°F
- IP rating: IP67, Wet Locations
LIGHTING SPECIFICATION
- Integrated COB LED Bar (Weatherproof) with built-in driver
- Lens: PC Lens
- Total Lumens: 86LM
- Color Temperature: 2700K/3000K/4000K/5000K
WARRANTY
- 1 years
INSTALLATION
- single-gang J-box or Weatherproof Box (Not included)
RESOURCES AND DOWNLOADS
SKU | WM-SLEA-120V |
---|---|
Weight | 12.00 LBS |
Light Source | LED |
Driver Type | 120V AC |
Lumen Output | 86lm |
Luminaire Efficacy Rating (LER) | 43LM/W |
Total Input Watts | 2W |
