Cloud fixture with sensor, 120V, 20 watts, 1,500 lumens, available in 2700K/ 3000K/ 3500K/ 4000K/ 5000K CCT adjustable, up to 50,000 hours rated life, suitable for damp locations when gasket is used, 5 years limited warranty.
The LED Flush Mount Surface Fixture is a low profile downlight intended for ceiling or wall mount applications. Driver on Board (DOB) technology, with no driver or transformer needed. These flush mount ceiling lights mount directly to a 4” deep dish junction box ideal for Residential and commercial applications.
FEATURES
- Construction: Spun Aluminum + Steel (Brushed Nickel Finish)
- Optics: White Translucent Acrylic Lens
- 5-Year Warranty
- 50,000 Hours Rated Life
- MCT: Multi Color Temperature (Selectable with Switch Inside Fixture)
- Motion Sensor Installed under the lens
ELECTRICAL
- Voltage: 120 VAC 60Hz
- Wattage: 20 W
- Power Factor: >0.9
- Efficacy: 75 LPW
MECHANICAL
- Optics: White Translucent Acrylic Lens
- Construction: Spun aluminum Steel (Brushed Nickel Finish)
- Gasket: Closed Cell Neoprene Foam Gasket
- Operating Temp: -4ºF to +104ºF
- Suitable for Damp Locations When Gasket is Used
- IP Rating: IP20
MOTION SENSOR
- Mounting Height: 14.5ft
- Hold Time: 1min
- Minimum Ambient Light: 30Lux
- Detection Radius: 150°
LIGHTING
- Dimmable Down to 10% Using a Standard TRIAC LED Dimmer
- Total Lumens: 1500LM
- Color Temperatures: 2700K/3000K/3500K/4000K/5000K
- Multi-CCT (selectable with switch is on the LED Board Under the Lens)
- Color Rendering Index: CRI ≥ 80
APPLICATIONS
- The LED Flush Mount Surface Fixture is a low profile down light intended for ceiling or wall mount applications. Driver on Board (DOB) technology, with no driver or transformer needed. These flush mount ceiling lights mount directly to a 4” deep dish junction box ideal for Residential and commercial applications.
RESOURCES AND DOWNLOADS
SKU | WM-FCRB-16-MCT5-SEN |
---|---|
Weight | 16.00 LBS |
Light Source | LED |

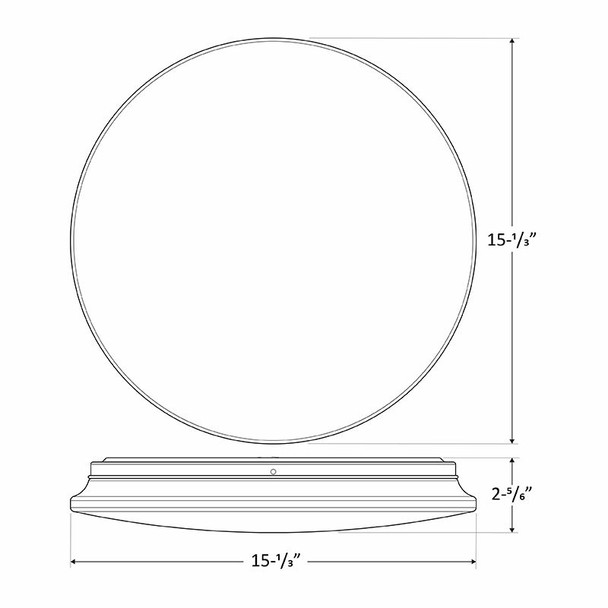

Fixture Size | 15.3" x 2.8" |
Total Input Watts | 20W |
Driver Type | 120VAC |
Color Temperature (CCT) | 5CCT |
Color Rendering Index (CRI) | ≥ 80 |
