Name: X-GEN Classic Wall Pack Adj. 20W 30K Photocell 120-277V 0-10V
Brand: Westgate Manufacturing
SKU: WM-LSWX-20W
Price: 54.15 USD
Availability: InStock

Description

Details

Warranty

Delivery & Returns

Description

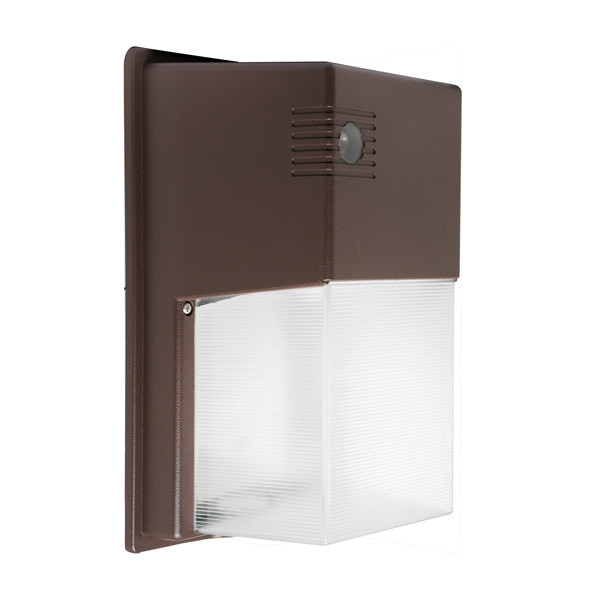

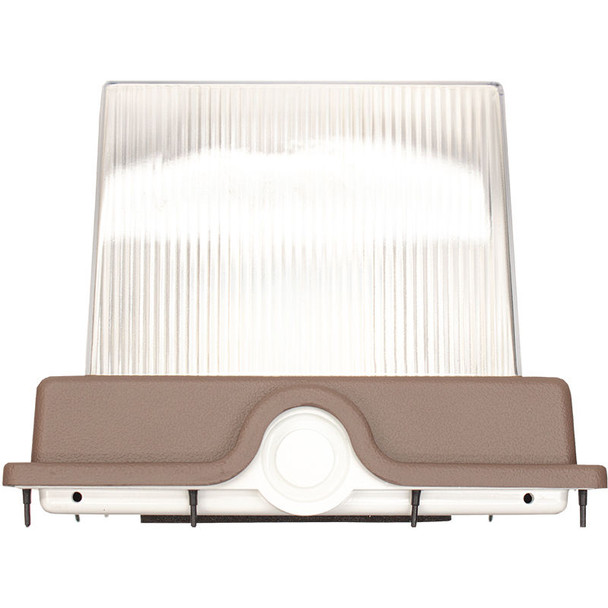

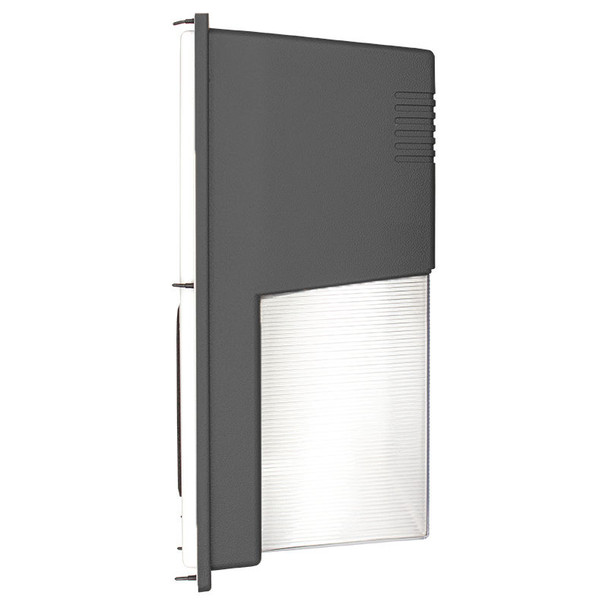

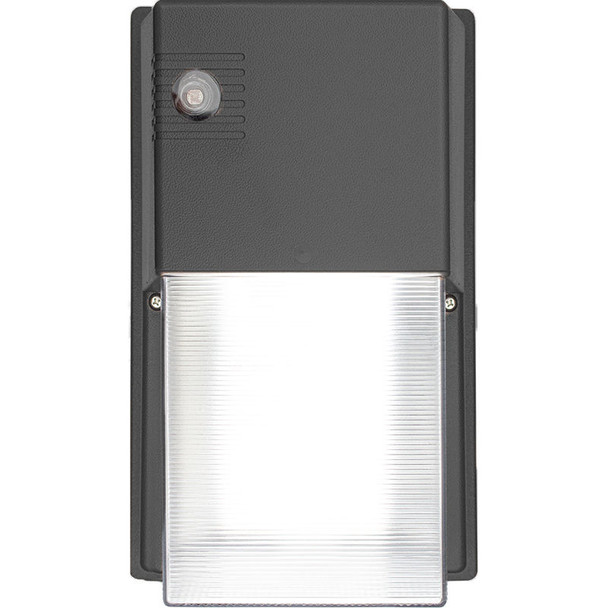

20 Watt Small Wall Pack with Photocell - WM-LSWX-20W

Illuminate your spaces with the 20 Watt Small Wall Pack with Photocell. Operating between 120-277V, this energy-efficient wall pack delivers 2,450 lumens and comes with an option of either 3000K or 5000K color temperatures. With a rated life of up to 70,000 hours and a 7-year limited warranty, this fixture is built for longevity and reliability. Suitable for wet locations, this wall pack is perfect for general site lighting, loading docks, doorways, pathways, and parking areas.

Features

Back plate: Rugged die-cast aluminum for durability
Threaded 1/2” Knockout provided on the top section of the back
Polycarbonate housing and lens for impact resistance
Comes with a robust 7-year warranty

Electrical Specifications

Wide voltage range: 120-277V AC 60Hz
Wattage: Efficient 20W consumption
High power factor: >0.90 for reduced energy waste
Exceptional efficacy: 124 LPW
Includes pre-wired photoelectric control (dusk to dawn photocell), 120 Volt, removable
Photocell response time: Maximum 3 seconds

Mechanical Specifications

Aluminum LED board offering high conductivity, water resistance, aging resistance, and salt mist resistance
Non-cutoff optics for maximum light distribution
Operating temperature range: -4°F to 104°F
Rated for wet locations with an IP54 protection level

Lighting Specifications

LED type/brand: 2835 LUMILEDS
Total Lumens: 2450LM
Optional Color Temperatures: 3000K / 5000K
Color Rendering Index: CRI ≥ 70
Beam angle: 90° x 110° for wide coverage
Rated life: Long-lasting 70,000 hours

Ideal Applications

General site lighting
Loading docks
Doorways
Pathways
Parking areas

RESOURCES AND DOWNLOADS

20 Watt Small Wall Pack with Photocell Spec Sheet

Westgate Resources and Downloads

Details

Beam Angle:	90°\|90° x 110°
CRI:	70
Color Temperature:	3000K
Compliance & Warranty:	7 Year Warranty\|DLC Premium\|UL Listed
Country of Origin:	CHINA
Dimming Type:	0-10V
Driver Type:	120-277V
Finish / Color:	Bronze
Housing Material:	Aluminum
IP Rating:	IP65
Item Height (Inch):	5.1
Item Length (Inch):	11
Item Weight (LBS):	3.6008836156863335
Item Width (Inch):	6.8
L70 Expected Life (hours):	50,000hr
LED Type:	LED
Light Source:	LED
Lumen Output:	2450
Luminaire Efficacy Rating (LER):	124lm/W
Operating Temperature:	-40℉~+104℉
Power Factor:	>0. 9
Ships From:	CA
THD:	<20%
Voltage:	120-277V
Wattage:	20W
