Name: Gen. 3 Street Light , 200W , 30K , 3030 Lumens , 100-277V
Brand: Westgate Manufacturing
SKU: WM-STL3-200W-30K
Price: 242.7 USD
Availability: InStock

Description

Details

Warranty

Delivery & Returns

Description

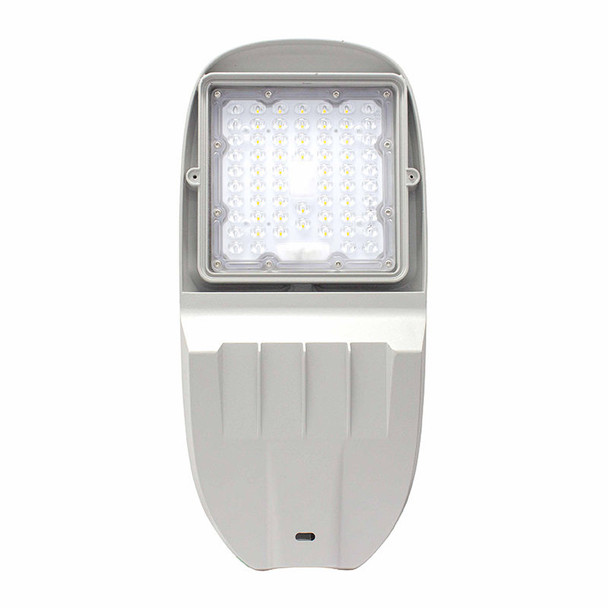

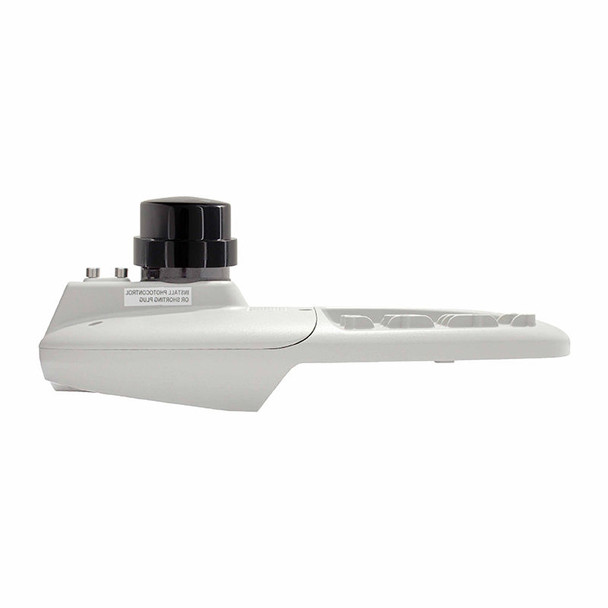

Illuminate your streets, pathways, and parking areas with the high-performance WM-STL3-200W-30K LED Street/Roadway Light. This 200-watt LED light delivers an impressive 27,000 lumens with an efficiency of 135 LPW, making it ideal for a range of outdoor lighting applications such as general site lighting, roadways, alleys, and more. Available in 3000K color temperature, it provides excellent color rendering with a CRI of ≥80.

FEATURES

Elegant Light Grey Finish
Equipped with a NEMA Twist-Lock Photocell Socket (Shorting Cap Included)
Optional NEMA Twist-Lock Photocell (add “-P”)
7-Year Limited Warranty
Designed for Outdoor Use

ELECTRICAL SPECIFICATIONS

Voltage: 120-277V; 60Hz AC
Power Factor: >0.95
Wattage: 200W
Efficacy: 135 LPW

MECHANICAL SPECIFICATIONS

Sturdy Die-cast Aluminum with Powder Coat Finish (Light Grey)
Cord Type: 40” SJTW 18/3 AWG Cable
Includes NEMA Twist-lock Photocell Socket and Shorting Cap
6KV Lightning Surge Protection
Fits 2-15/16” Diameter Pole Entry, with Adapter for Smaller Poles
Maximum Ambient Temperature: -40°F to 104°F
Rated Life: Up to 50,000 Hours
Suitable for Wet Locations with IP65 Rating

APPLICATIONS

Features Optical TYPE III Lens for High Light Transmittance, Anti-UV and Flame Resistant
0-10V Dimming Capability
Driver Located in an Isolated Compartment for Enhanced Thermal Management
Total Lumens: 27,000 LM
Color Temperature: 3000K
Ideal for general site lighting, streets, roadways, alleys, loading docks, doorways, pathways, and parking areas

RESOURCES AND DOWNLOADS

3rd Gen. Street Light 200W Spec Sheet

Westgate Resources and Downloads

Details

BUG Rating:	B4-U0-G3
Beam Angle:	140° x 80°
CRI:	70
Color Temperature:	3000K
Compliance & Warranty:	7 Year Warranty\|DLC Premium\|UL Listed
Country of Origin:	China
Dimming Type:	0-10V
Driver Type:	120-277V
Finish / Color:	Gray
Housing Material:	Aluminum
IP Rating:	IP65
Item Height (Inch):	4.85
Item Length (Inch):	21.85
Item Weight (LBS):	11.684499895798512
Item Width (Inch):	12.3
L70 Expected Life (hours):	70,000hr
LED Type:	Lumileds LEDs
Lens Material:	Optical TYPE III Lens,
Light Source:	LED
Lumen Output:	27000
Luminaire Efficacy Rating (LER):	135lm/W
Operating Temperature:	-40°F to 104°F
Power Factor:	0.9
Ships From:	CA
THD:	<20%
Voltage:	120-277V
Wattage:	200W
