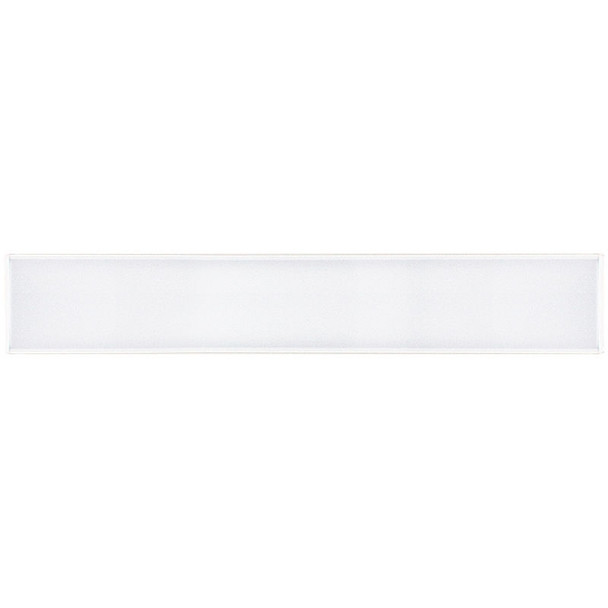

Experience the future of lighting with our 2ft. LED Seamless Linkable Linear Lighting System. Engineered for efficiency and longevity, this 20-watt luminaire delivers an impressive 2,200 lumens and features a selectable color temperature ranging from 3000K to 5000K, making it the ideal solution for a variety of spaces. Whether you need lighting for storage rooms, offices, conference rooms, retail areas, or hospitality settings, this versatile system adapts effortlessly.
Linear Lighting can be customized to your desired length, appearance, and color temperature and can be suspended, surface mounted, or recessed according to your specific needs.
Key Features
- Energy-efficient 20W LED lighting
- Delivers 2,200 lumens
- Select from 3000K, 3500K, 4000K, or 5000K color temperatures
- Rated for up to 50,000 hours of use
- Offers a 5-year limited warranty
Additional Features
- Superior architectural LED lights
- Seamless linkable design for uniform illumination
- Opal polycarbonate lens for direct (down) lighting
- Optional recessed and wall mounting kits available
- Optional louver lens version available
Electrical Specifications
- Voltage: 120-277VAC 50/60Hz
- Wattage: 20W
- Power Factor: >0.95
- Light efficiency: 104-117 LPW
- Total Harmonic Distortion: ≤ 20%
Mechanical Specifications
- Low profile modern design
- Made of durable aluminum with matte white finish
- Custom colors available
- Snap-in lens design
- Mountable via T/L/X joints on both ends
- Mounting options: Surface, suspended, wall, recessed
- IP54 rating for dust and water resistance
- Operating Temperature: -13°F to 104°F
- Adjustable suspension brackets included
Lighting Features
- Dimmable: 0-10V dimming
- Total Lumens: Up to 2511 LM
- Color Temperatures: 3000K, 3500K, 4000K, 5000K
- Color Rendering Index: CRI ≥ 80
- Up light option available
- Beam Angle: 104.8°(H) x 100.5°(V)
Applications
- Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, and conference halls
- Suitable for any indoor lighting application
Resources and Downloads
| SKU | WM-SCX4-2FT-20W-MCT4-D |
|---|---|
| Weight | 6.00 LBS |
| Total Input Watts | 20W |
| Lumen Output | 2200 |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 3500K |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Voltage | 120-277VAC |
| Color Rendering Index (CRI) | >80 |
| L70 Expected Life (hours) | 50,000 |
| Listings and Ratings | UL, DLC |
