2Ft. 20 Watt LED Superior Architectural Seamless Linear Light - CCT Adjustable

No reviews yet Write a Review
Ask Questions

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

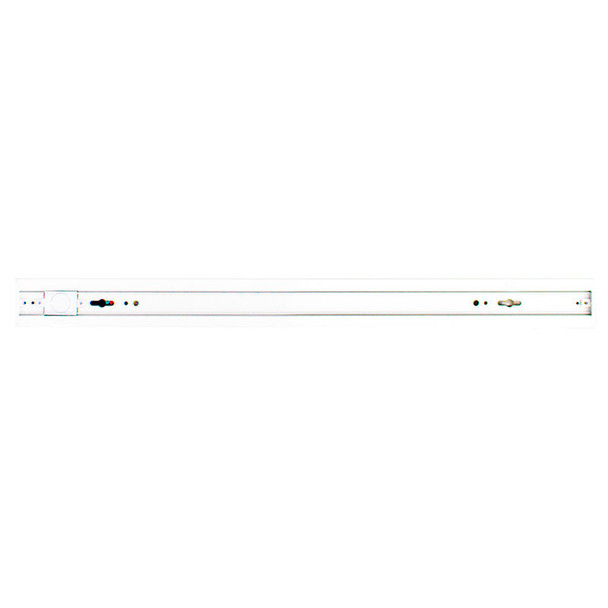

2Ft. 20 Watt LED Superior Architectural Seamless Linear Light - CCT Adjustable

$123.74
MSRP: $136.78
You save $13.04 (10%)
  • SKU: WM-SCX2-2FT-20W-MCT4-D
  • UPC: 845060056990
  • MPN: SCX2-2FT-20W-MCT4-D
  • Shipping: Free Shipping

Quick Overview

2ft. LED superior architectural seamless linear light, 20 watts, 2,032-2,084 lumens, available in 3000K/ 3500K/ 4000K/ 5000K CCT adjustable, up to 50,000 hours rated life, 5 years limited warranty.

In Stock & Ready To Ship!
Current Stock:Only left: 271

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

Versatile Linear Lighting for Your Needs

Discover the unparalleled adaptability and performance of our Linear Lighting system. Perfect for a variety of settings, it can be customized to meet your specific requirements in length, look, and color temperature. Whether you need suspended, surface-mounted, or recessed lighting, this system is ideal for storage rooms, offices, conference rooms, retail reception areas, hallways, educational facilities, hotels, and restaurants.

Design Features

  • LED Superior Architectural Lights
  • Seamless Linkable Linear Lighting System
  • Opal Polycarbonate Lens for Direct (DOWN) Lighting
  • Optional Recessed & Wall Mounting Kits Available
  • Optional Louver Version Lens Available
  • Lens Type: Opal Polycarbonate Lens
  • MCT: Multi-Color Temperature (Selectable with Switch Inside Fixture)

Electrical Specifications

  • Voltage: 120-277VAC 50/60Hz
  • Wattage: 20W
  • LPW: 89 / 100 / 92 / 96
  • Power Factor: >0.95

Mechanical Details

  • Low Profile Modern Design
  • Aluminum Housing with Matte White Finish
  • Lens Snaps into Housing
  • Make Different Connections via T/L/X Joints on Both Ends
  • IP Rating: IP54
  • Operating Temperature: -13°F~104°F

Lighting Characteristics

  • Dimmable: 0-10V Dimming
  • Total Lumens: 2032LM / 2156LM / 2083LM / 2084LM
  • Color Temperatures: 3000K / 3500K / 4000K / 5000K
  • Multi-CCT (Selectable with Switch Inside the Fixture)
  • Color Rendering Index: CRI ≥ 80
  • Up Light Option Available
  • 50,000 Hours Rated Life
  • 5-Year Warranty
  • Beam Angle: 104.8°(H) x 100.5°(V)

Suitable Applications

  • Ideal for offices, hotels, corridors, salons, libraries, meeting rooms, and conference halls
  • This fixture is the best solution for modern lighting needs
  • Versatile enough for any indoor application

Resources and Downloads

SCX2 Series Spec Sheet
