Description

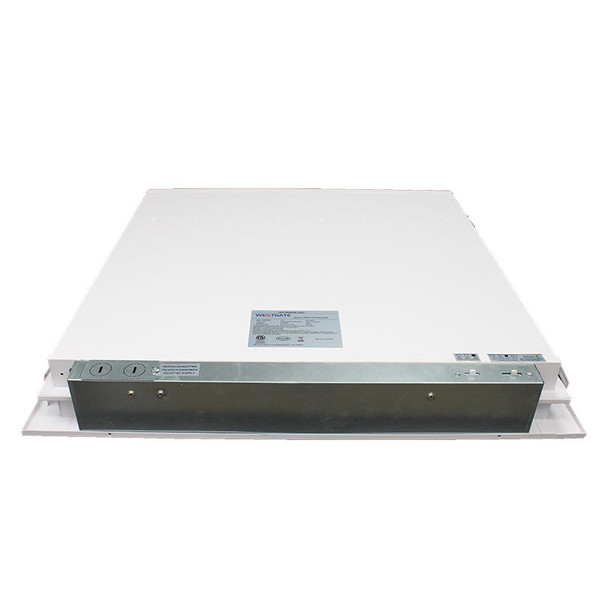

This modern, energy-efficient troffer is designed with a sloped lens for enhanced light distribution, offering flexibility with selectable wattage and color temperature (CCT). Ideal for commercial and architectural spaces, it provides seamless integration with varied design aesthetics while delivering superior illumination performance.

Key Features and Benefits

High quality LED chips for efficiency, heat dissipation, stability, and lumen maintenance.
Selectable Multi-CCT & Power Switches Inside The Driver Box.
Adjustable power settings maximize energy savings.
Polycarbonate lens for durability.
Driver disconnect for compliance with US and Canadian codes.
Performance engineered optical lens assembly reduces glare.
Dimmable: 0~10V Dimming.
7-Year Warranty.

Specifications

Voltage: 120-277VAC 50/60Hz.
Wattage: 30W/40W/50W.
Total Lumens: 5500LM.
Efficacy: 110 LPW.
Color Temperatures: 3000K/3500K/4000K/5000K.
Color Rendering Index: CRI ≥ 80.
IP Rating: IP20 Indoor use only.
Operating Temp: -22°F to 104°F.
Dimensions: 47.76"(W) x 23.74"(H) x 3"(D).
70,000 Hours Rated Life.

Common Uses

Perfect for office, retail, and educational environments. Suitable for use in retail, schools, offices, healthcare, conference rooms, hospitality, corridors, reception areas, foyers, and libraries.

RESOURCES AND DOWNLOADS

Architectural Advanced Edge-Lit Wing Design Troffer Spec Sheet

Westgate Resources and Downloads

IES File

Details

Beam Angle:	113.6°
CRI:	80
Color Temperature:	3000K\|3500K\|4000K\|5000K
Compliance & Warranty:	5 Year Warranty\|DLC Standard\|UL Listed
Country of Origin:	DDP
Dimming Type:	0-10V
Efficacy:	110LM/W
Finish / Color:	White
Housing Material:	Steel
IP Rating:	IP20
Item Height (Inch):	2.95
Item Length (Inch):	47.76
Item Weight (LBS):	17.2
Item Width (Inch):	23.74
L70 Expected Life (hours):	50000hr
LED Type:	zhongyang LED Chips
Lens Material:	Acrylic Lens
Lumen Output:	5500\|3300\|4400
Operating Temperature:	-4°F to 104°F
Power Factor:	>0.9
Ships From:	CA
Special Features:	Selectable CCT\|Selectable Wattage\|Selectable Lumen Output
THD:	<20%
Voltage:	120-277V
Wattage:	30W\|40W\|50W
