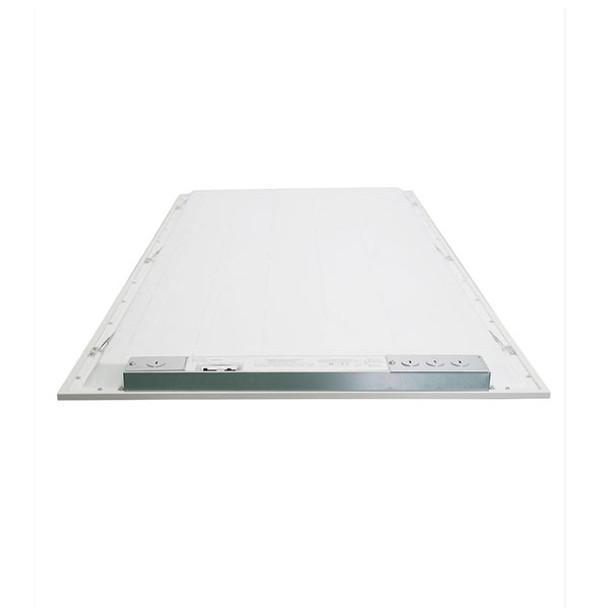

2'X4' LED backlit panel, 35-50 power selectable, 4,375-6,250 lumens, available in 3000K/ 3500K/ 4000K/ 5000K CCT adjustable, white framed edge, up to 50,000 hours rated life, 5 years limited warranty.
APPLICATIONS
- Ceiling
- T-Bar Ceiling
- Troffer Replacement
FEATURES
- Instant On LED
- Multi Watt Adjustable Switch
- Mutli CCT Color Adjustable
- Smooth Evenly Distributing Light Lens
- Replaces 2&4 Lamp Fluorescent Troffer
- Junction Box for Easy Connection
- 10% 0-10V Dimming
- Long Life 50,000 Hours
- White Framed Edge
- Surface Mount Frame Kit Available Sold Separately
ACCESSORIES
- Surface Mounting Frame Kit
SPECIFICATIONS
- Input Line Voltage: 120-277VAC
- Input Power: 35/40/45/50W
- Input Line Frequency: 60Hz
- Lamp Life (Rated): 50,000hrs
- Minimum Starting Temp: -20°C
- Maximum Operating Temp: 40°C
- CCT: 3000K/3500K/4000K/5000K
- CRI: ≥80
- CBCP: 4375/5000/5625/6250
- Power Factor: 0.90
- THD: ≥15%
RESOURCES AND DOWNLOADS
| SKU | CTL-CL3X5P24-CCT |
|---|---|
| Weight | 24.00 LBS |
| Light Source | LED |
| Fixture Size | 2'x4' |
| Color Rendering Index (CRI) | ≥80 |
| Driver Type | 120-277VAC |
| Lumen Output | 4,375-6250lm |
| L70 Expected Life (hours) | 50,000hrs |
| Color Temperature (CCT) | CCT |
| Total Input Watts | 35/40/45/50W |
