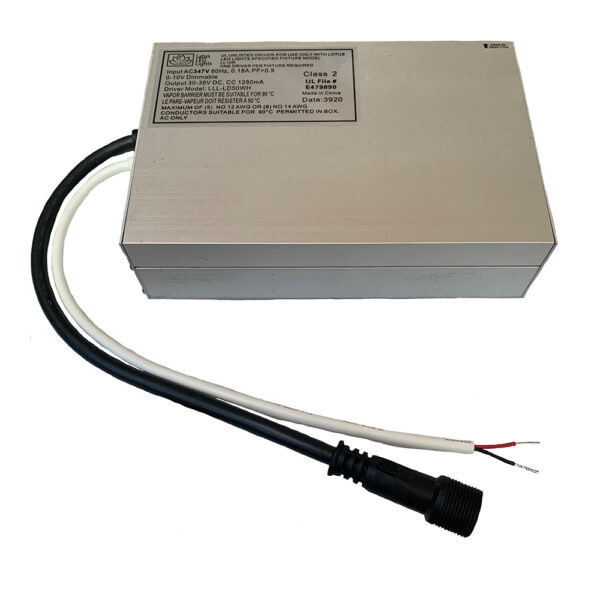

This 347V Dimmable LED Driver is designed specifically for compatibility with Lotus LED Lights model LL10R, ensuring a seamless fit and optimal performance. The driver provides a constant current of 1280 mA and operates with high efficiency and a power factor greater than 0.9.
Key Features and Benefits
- Specifically designed for Lotus LED Lights model LL10R
- High efficiency with a power factor > 0.9
- 0-10V dimmable capability for versatile lighting control
- UL/cUL certified for safety and reliability
- Easy installation with direct joist mounting and quick connectors
Specifications
- Input: 347V AC
- Output: 30-38 V DC, 1280 mA Constant Current
- Dimensions: 5" x 3.5" x 1.5"
- Connection box wire capacity: Up to 5 No 12 AWG or 8 No 14 AWG
- Dimming: 0-10V control wires
Common Uses
Perfect for commercial and industrial settings where Lotus LED Lights model LL10R fixtures are utilized and require reliable, dimmable power sources.
RESOURCES AND DOWNLOADS
| SKU | LLL-LLL-LD50-WH-FP |
|---|---|
| Weight | 3.00 LBS |
