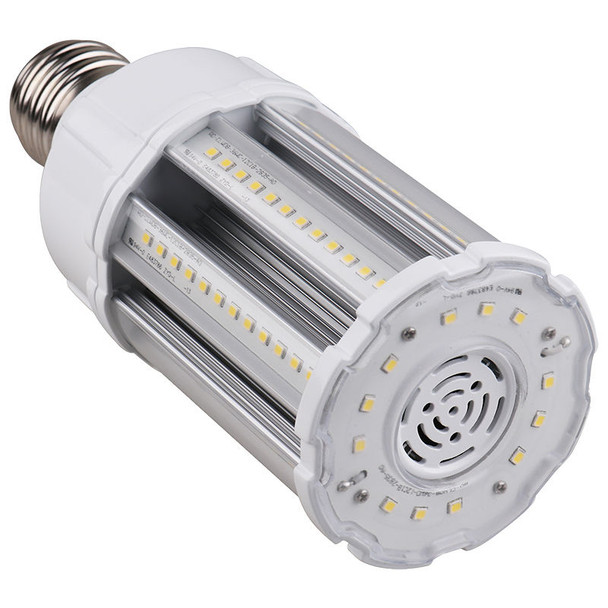

Corn LED lamp, E39 mogul base, 36 watts, 4,500-5,580 lumens, available in 3000K, 5000K color temperature (CCT), up to 50,000 hours rated life, suitable for damp locations, 5 years limited warranty.
LED Corn Lamp suitable for supermarkets, warehouses, garages, home, offices, hotels, hospitals, schools, high bay retrofitting.
FEATURES
- E39 Mogul Base
- 5-Year Warranty
- Housing: PC + Aluminum
- 50,000 Hours Rated Life
ELECTRICAL
- Voltage: 120-277V AC 50/60Hz
- Wattage: 36W
- Power Factor: >0.9
- AC Direct / Bypass Existing Ballast
- THD: ≤20%
- Efficacy: 125/ 155 LPW
MECHANICAL
- PC and Aluminum housing and Sealant pouring for whole driver
- E39 Mogul Base
- Operating temperature: -40°F to 176°F
- Minimum Enclosed Space Dimension: 15.0”(H) x 7.9”(D) and 928 Cubic in
- Suitable for Damp Location
LIGHTING
- LED Type: SMD2835
- Total lumens: 5500LM/4500LM
- Color temperature: 5000K/3000K
- Color rendering index: >80
- Beam angle: 360°
APPLICATIONS
- LED Corn Lamp suitable for supermarkets, warehouses, garages, home, offices, hotels, hospitals, schools, highbay retrofitting.
RESOURCES AND DOWNLOADS
SKU | WM-CL-EHL-36W |
---|---|
Weight | 8.00 LBS |
Light Source | LED |
Fixture Size | 8.30"x3.34" |
Lumen Output | 4,500-5,580lm |
L70 Expected Life (hours) | 50,000hrs |
Luminaire Efficacy Rating (LER) | 125lm/w, 155lm/w |
Color Rendering Index (CRI) | >80 |
Driver Type | 120-277VAC |
Color Temperature (CCT) | 3000K |
Color Temperature (CCT) | 5000K |
Total Input Watts | 36W |
