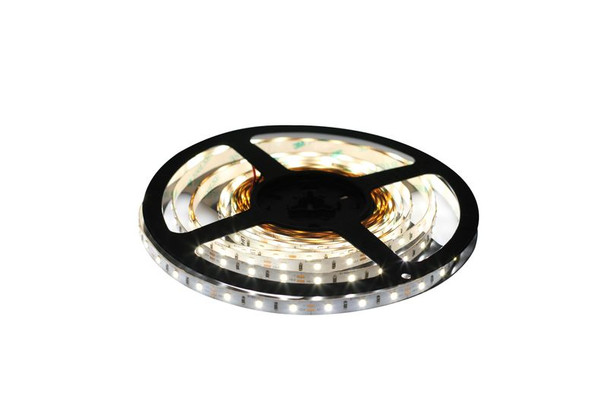

LED ribbon light indoor high output, 4.4 watts, 310 lumens per feet, available in 2700K, 3000K, 4000K or 5000K color temperature (CCT), maximum run of 20 feet, 3 years warranty.
Ideal for undercabinet, soffit, display cases and toe kick lighting.
ELECTRICAL SPECIFICATIONS
- Voltage: 24VDC (LED driver required)
- Wattage: 4.4W per ft.
- Max Run: 20ft.
- Efficacy: 75~79LM/W per ft.
HOUSING SPECIFICATIONS
- Cutting increment: Every 4 inches
- 3M double sided tape(9474LE) is preinstalled
- Includes 1 female ribbon-to-power supply connector (Prewired) and 1 male plug for connection to next ribbon (Prewired)
- IP rating: IP20
CERTIFICATIONS
- UL
LIGHTING SPECIFICATIONS
- Dimming: Dimmable using a magnetic driver
- LED: SMD2835 chip spaced 5/8” on center, 19 per foot, 0.23 wats each chip
- LED Type: SMD2835
- Total lumens: 310~350LM per ft.
- Color temperature: 2700K/3000K/4000K/5000K
- Color rendering index: 90
- Beam Angle: 120º
WARRANTY
- 5 years
RESOURCES AND DOWNLOADS
| SKU | WM-ULR-IN-16F-HO |
|---|---|
| Weight | 8.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Color Rendering Index (CRI) | 90 |
| Driver Type | 24VDC (LED |
| Lumen Output | 310~350lm per ft. |
| Luminaire Efficacy Rating (LER) | 75~79lm/W per ft. |
| Color Temperature (CCT) | 2700K |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Total Input Watts | 4.4W |
