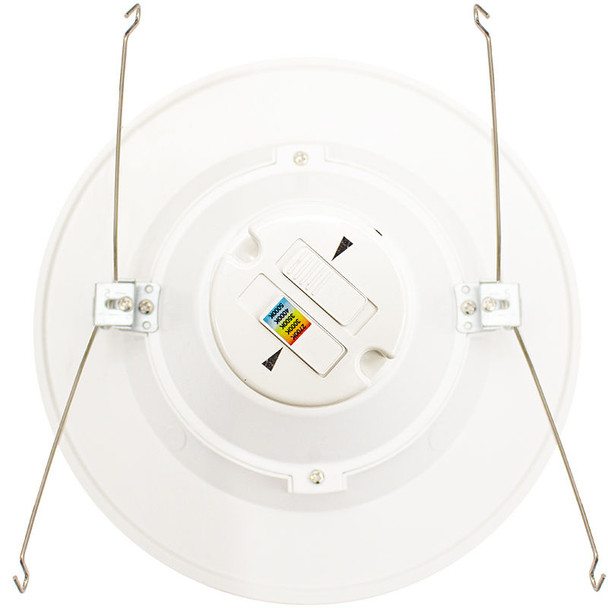

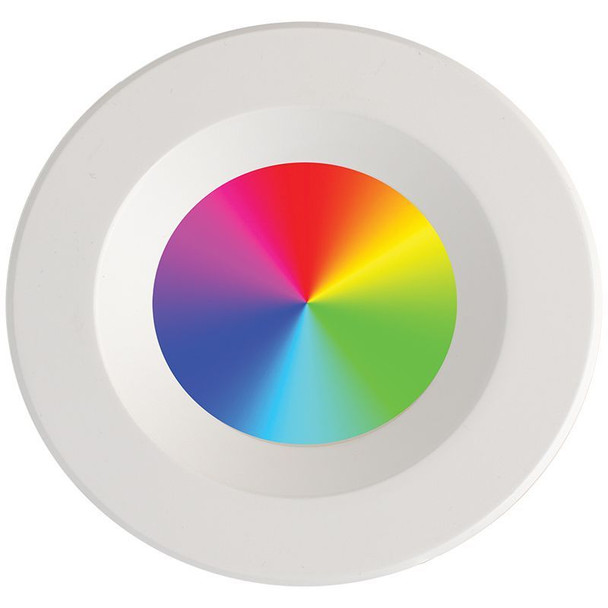

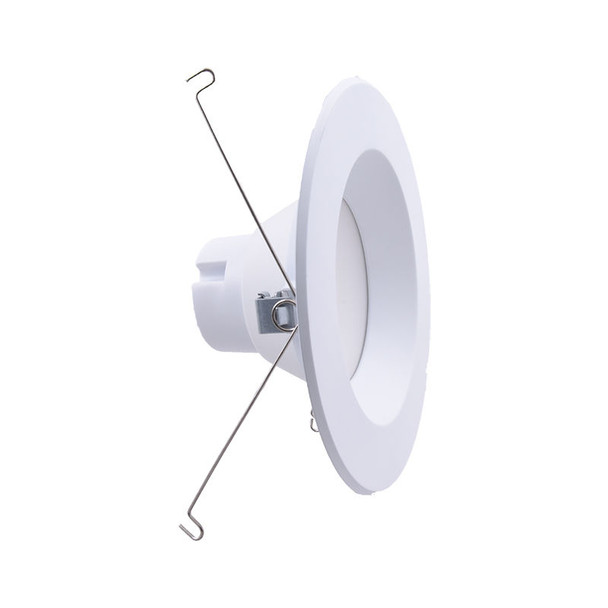

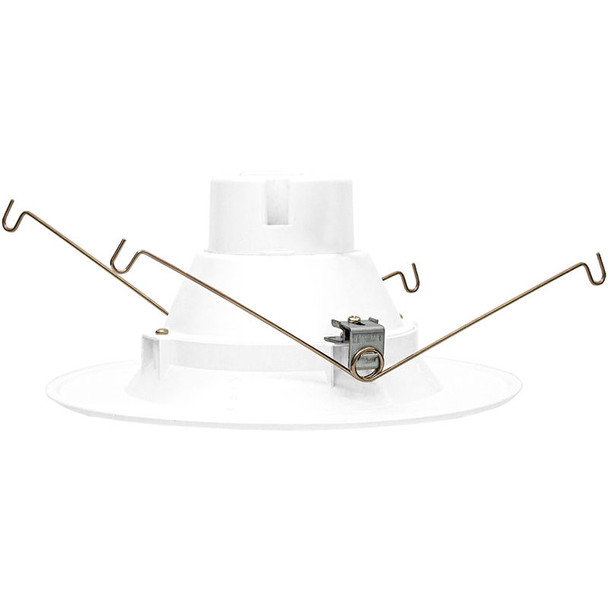

6-inch round LED smooth recessed light trim, 13 watts, 850 lumens, available in RGBW (controlled by WG smart app) color temperature, suitable for damp locations when gasket is used, up to 50,000 hours rated life, 5 years warranty.
ELECTRICAL SPECFICATIONS
- Voltage: 120VAC
- Wattage: 13W
- Power factor: >0.9
- Efficacy: 65LM/W
HOUSING SPECFICATIONS
- Die-cast aluminum with white powder coat finish
- Gasket: closed cell Neoprene foam gasket
- Base: E26
- Isolated driver for improved thermal management
- Suitable for damp locations when gasket is used
- Lifespan: 50,000 hr.
- Maximum Ambient temperature: 104°F
CERTIFICATIONS
- UL, FCC
LIGHTING SPECFICATIONS
- Dimming: dimmable (Controlled by WG Smart App)
- Lens: white translucent foam acrylic
- Total lumens: 850LM
- Color temperature: RGBW (Controlled by WG Smart App)
- CRI: 90
CONTROL BY APP:
- Dimming controlled by Westgate Smart App
- RGBW controlled by Westgate Smart App
WARRANTY
- 5 years
RESOURCES AND DOWNLOADS
6" Round LED 13W Smooth Recessed Light Trim - RGBW Spec Sheet
| SKU | WM-TC-RDPS6-13W-RGBW-WIFI |
|---|---|
| Weight | 8.00 LBS |
| Light Source | LED |
| Fixture Size | Other |
| Color Rendering Index (CRI) | 90 |
| Driver Type | 120VAC |
| Lumen Output | 850lm |
| Luminaire Efficacy Rating (LER) | 65lm/W |
| L70 Expected Life (hours) | 50,000 hrs |
| Color Temperature (CCT) | RGBW |
| Total Input Watts | 13W |
