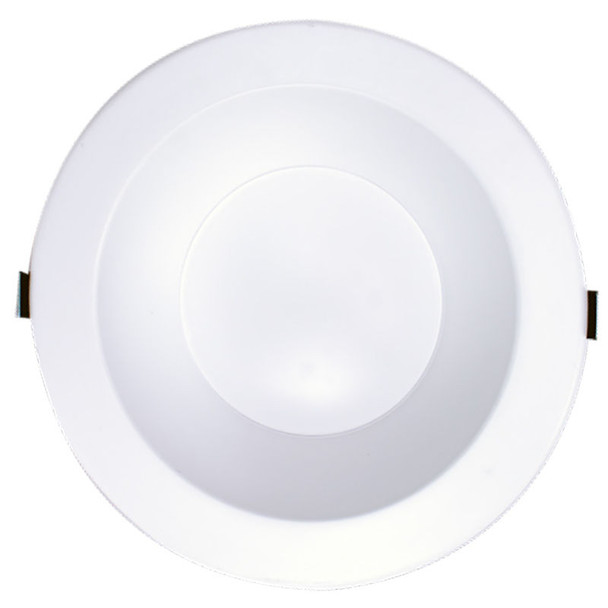

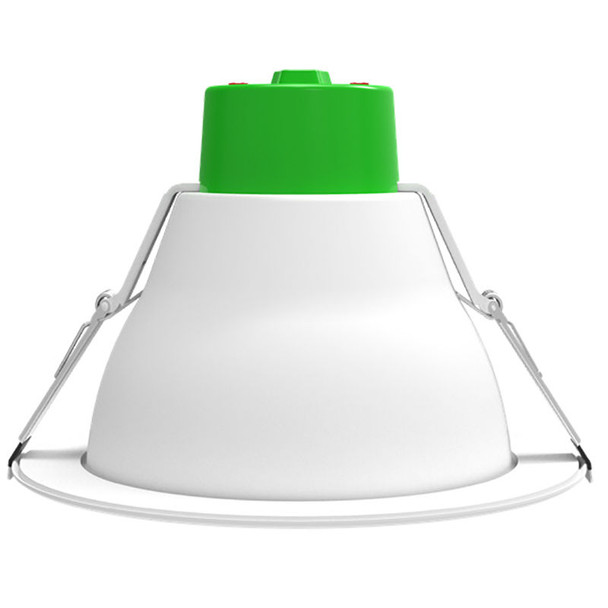

Introducing the Westgate Manufacturing CRLE Series 8-inch Commercial Retrofit Downlight. This versatile lighting solution is designed for new construction applications, perfect for closets, storage areas, attics, corridors, and general lighting solutions for residential and commercial applications.
Key Features and Benefits
- Multi CCT (Selectable Switch on the Back of the driver)
- Isolated Driver for Improved Thermal Management
- Dimming: 0~10V Dimmable
- Total Lumens: 2200LM Max.
- Color Temperature: 3000K/4000K/5000K
- Color Rendering index: >80
- Beam Angle: 100°-110°
- Rated Life: 50,000 hrs
- Suitable For Damp Locations
- 5-Year Warranty
Specifications
- Wattage: 10W/15W/22W
- Voltage: 120-277V
- Output Voltage: 36VDC
- Power Factor: >0.90
- Efficacy: 100 LPW
- Total Harmonic Distortion: ≤15 %
Common Uses
Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications.
RESOURCES AND DOWNLOADS
SKU | WM-CRLE8-10-22W-MCTP-WH |
---|---|
Weight | 10.00 LBS |
