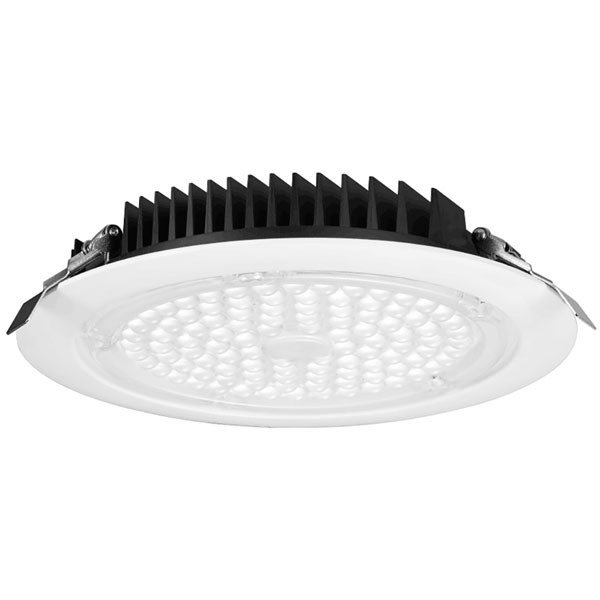

8-inch round LED commercial recessed, 40 watts, 4,500-4,700 lumens, available 3000K or 4000K color temperature (CCT), up to 50,000 hours rated life, white or black finish, 5 years limited warranty
DESCRIPTION
8" Round Recessed LED With Integral Driver In Connection Box Commercial Grade Quality Built to Last
FEATURES & BENEFITS
- 2 1/4" Deep - Install Where Ceiling Space Is Limited
- Type IC Rated - No Housing Required
- Fast & Easy To Install- Save On Labor
- Driver Inside Connection Box- No Junction Box Needed
- Wet Location IP65 Approved
MOUNTING
- Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips Ceiling Clearance Required: 2 1/4"
SPECIFICATION
- Applications: High Ceiling Recessed Mount
- Color Temperature K: 3000 | 4000
- Light Output lm: 4500 | 4700
- Beam Angle: 45"
- CRI: 80
- Deafault Driver Input: 120V-277V AC 0-10V Dimmable
- Optional Driver Input: 347V AC 0-10V Dimmable
- Power Factor: 0.95
- Junction Box Wire Capacity: Max 5 No 12 AWG or 8 No 14 AWG
- Approved Location: Insulated Ceilings, Wet Locations
- IP Rating: IP 65
- Air Tight: Yes
- Ambient Temperature: 40°F (-40°C) to +104°F (+40°C)
- Projected Life: 70% Light Output at 50,000 Hours
- Cerfication: cULus
- Warranty: 5 Years
RESOURCES AND DOWNLOADS
| SKU | LLL-LL8R |
|---|---|
| Weight | 20.00 LBS |
| Light Source | LED |
| Fixture Size | 8" Round |
| Color Rendering Index (CRI) | 80 |
| Lumen Output | 4,500lm-4,700lm |
| L70 Expected Life (hours) | 50,000hrs |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 4000K |
| Total Input Watts | 40W |
