Compact 24V 30W power supply with selectable dimming options, ideal for low voltage applications. Features forward and reverse phase dimming.

Key Features and Benefits

• Slim and compact 24V DC constant voltage hardwire driver
• Dedicated line voltage and low voltage wiring compartments

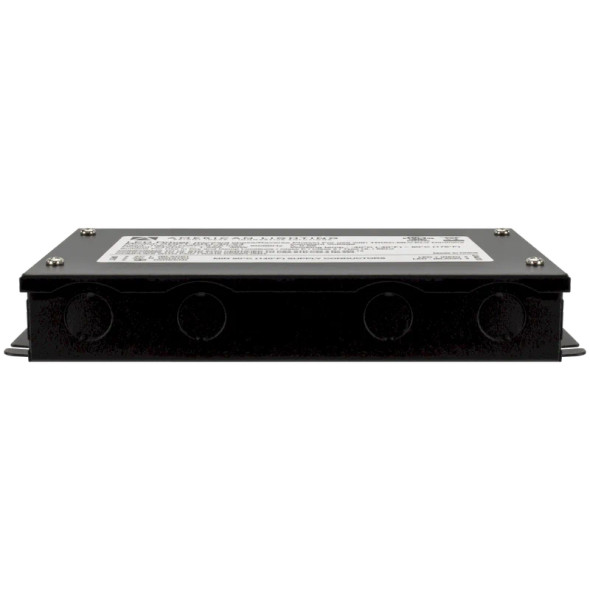

• Multiple 7/8” knock-outs for easy wire configuration
• Short circuit, over-voltage, over-temperature, overload protections
• 5-in-1 Forward and Reverse Phase Dimming: ELV / MLV / TRIAC / 0-10V/ 1-10V/Potentiometer / 10V PWM 4-in-1
• cULus Listed Wet location rated
• Class 2, Type HL, FCC Compliant

Specifications

• Input Voltage: 100-277V AC
• Input Frequency: 47-63Hz
• Output Voltage: 24V DC
• Rated Current: 1.25A
• Power Factor: 0.99@120V / 0.95@277V
• Efficiency: > 79% (120V) / 80% (277V)
• Dimensions: 6.49” (165mm) L x 3.6” (90mm) W x 1.02” (40mm) H
• Dimming: 0-100%
• Storage Temp: -40°F to 176°F (-40°C to 80°C)
• Ambient Temp: -40°F to 140°F (-40°C to 60°C)
• Operating Temp: -40°F to 140°F (-40°C to 60°C)
• Rating: cULus Listed for Wet locations

Common Uses

Ideal for use in low voltage applications requiring reliable power supply and dimming capabilities, such as LED fixtures and lighting systems.
