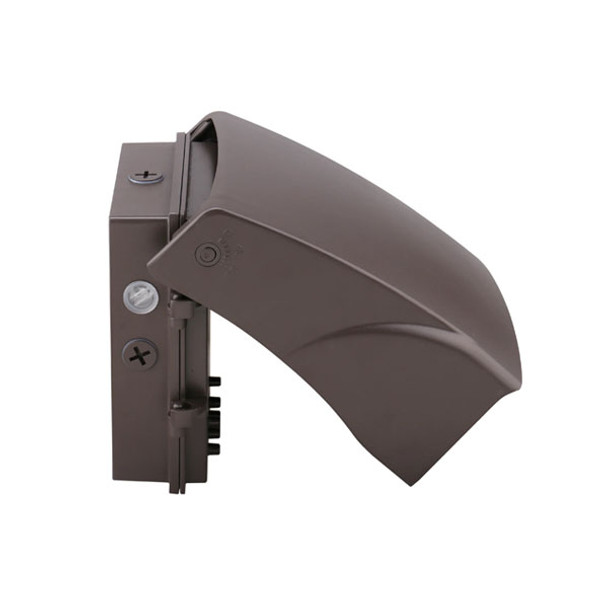

Note: Product image are for illustration purposes only. Actual product may vary due to specific configuration.

free-shipping

Adjustable Wallpack, 60W-80W Power and CCT Selectable

SKU: HLT-AWP-4-WS-CS-U-PC
$178.56
$169.25
You Save: $9.31
Adding to cart… The item has been added

Frequently Bought Together

Adjustable Wallpack, 60W-80W Power and CCT Selectable
(Inc. Tax)
(Ex. Tax)

Enter quantity and select options before adding to cart.

Adjustable wallpack, 60W/ 70W/ 80W power selectable, 8,032-11,144 lumens, available in 3000K/ 4000K/ 5000K CCT adjustable, up to 100,000 hours rated life, polycarbonate lens, suitable for wet location, 5 years limited warranty.

PROLED SELECT ADJUSTABLE WALLPACK

  • Selectable Color Temperature
  • Field adjustable lumens
  • Integrated photocell with enable/disable function
  • Adjustable head tilts up to 90 degrees
  • Dark sky friendly when mounte at 0° setting
  • Recessed optics for increased visual comfort

SPECIFICATIONS

DESCRIPTION

The Adjustable Wallpack offers a modern full cut-off design that is a perfect solution for a broad range of outdoor lighting applications. The AWP is designed with ProLED Select technology, that allow users to select between the desired lumens and CCT for their application. The AWP tilting head enables the installer to adjust between 0-90 degrees, putting light where you need it most. The AWP comes standard with an integrated photocell That is easily enabled or disabled, providing dusk-to-dawn controls for even greater energy savings. With ProLED Select Technology, adjustable head and built-in photocell, the AWP is one of the most versatile wallpacks in the market.

PERFORMANCE

  • 15W, 30W, 50W, 80W and 120W base wattage options
  • CCT selectable between 3000K-4000K-5000K
  • Wattage selectable on 30W-120W models
  • High efficacy up to 150 LPW
  • L70 lumen maintenance > 100,000 Hours @ 25°C
  • 5 year limited warranty
  • 0-10V dimming
  • 120-277VAC Input

CERTIFICATIONS

  • DLC 5.1 premium
  • cULus
  • IP65 rated
  • UL listed for wet locations
  • FCC
  • RoHs compliant

CONSTRUCTION

  • Rugged and modern die-cast housing
  • High durability textured bronze powder coat
  • Hinged door for easy access and installation.
  • Multiple conduit entry points
  • Polycarbonate lens
  • 0-90 degree adjustable head

CONTROLS

  • 0-10 VDC dimming standard
  • RF bi-level occupancy sensing

APPLICATIONS

  • Building entrances
  • Loading docks
  • Walkways
  • Storage facilities

RESOURCES AND DOWNLOADS

Adjustable Wallpack, 60W-80W Spec Sheet

SKU HLT-AWP-4-WS-CS-U-PC
Weight 12.00 LBS
Light Source LED
Fixture Size Other
Color Rendering Index (CRI) >70
Driver Type 120-277VAC
Luminaire Efficacy Rating (LER) 124lm/W-145lm/W
Lumen Output 8,032lm-11,144lm
L70 Expected Life (hours) 100,000hrs
Color Temperature (CCT) MCT
Total Input Watts 60W/70W/80W
