Proluxe Navi Dim Series, 24V DC All-In-One Dimmer + Driver, 60W, White or Black Finish

By American Lighting

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

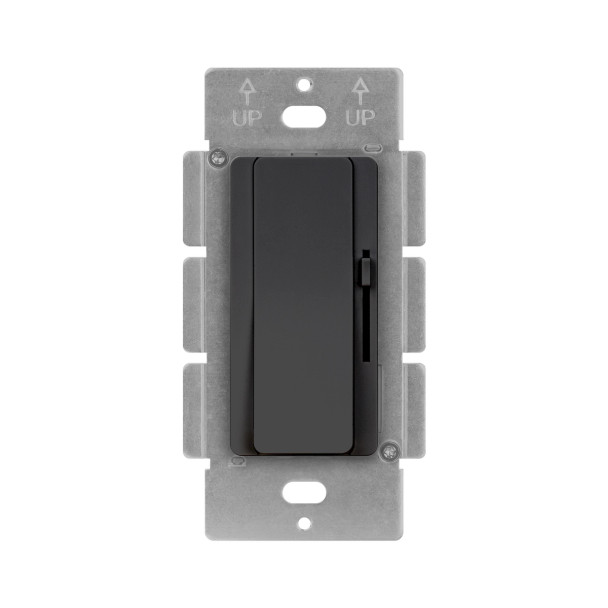

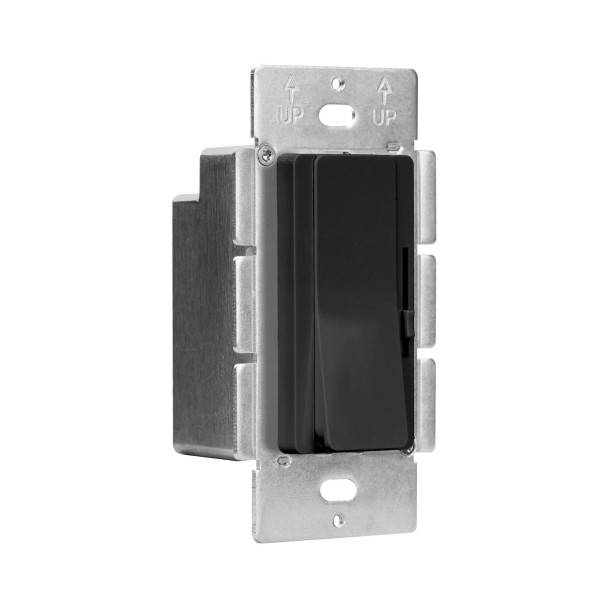

Proluxe Navi Dim Series, 24V DC All-In-One Dimmer + Driver, 60W, White or Black Finish

$147.65
  • SKU: AL-PLX-NAVI24V-60
  • MPN: PLX-NAVI24V-60

Quick Overview

Compact 24V DC all-in-one LED dimmer and driver, 60W max output, selectable white or black finish, fits standard wall box, 0.3-100% dimming range.

In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Proluxe Navi Dim Series 24V DC All-In-One Dimmer + Driver is a game-changer for LED lighting installations, merging a dimmer switch and power supply into a single, easy-to-install unit. Designed for seamless integration into standard in-wall switch boxes, this unit accepts 120V AC input and delivers a reliable 24V DC output, making it ideal for most 24VDC tape lights and fixtures.

Key Features and Benefits

  • Combines LED driver and in-wall dimmer for simplified installation
  • Eliminates compatibility issues with a single integrated solution
  • Wide 0.3-100% dimming range with smooth, flicker-free performance
  • Single pole or 3-way operation with push on/off switch
  • Adjustable voltage output dial to compensate for voltage drop
  • Includes voltage barrier for safe installation of high and low voltage circuits
  • No derating required when ganging multiple units
  • Power failure memory restores previous settings
  • High efficiency (91%) and power factor (>0.99)
  • cULus Listed, FCC, SELV, Class 2, and Class P certified

Specifications

  • Input Voltage: 120V AC (108~132VAC), 60Hz
  • Output Voltage: 24V DC (adjustable 24V-26V)
  • Max Wattage: 60W
  • Max Output Current: 2.5A
  • Dimming: 0.3-100% (16KHZ PWM)
  • Operating Temp: -40°C to 60°C
  • Rated Life: >30,000 hours
  • Available Finishes: White, Black
  • Fits standard single gang recessed electrical box

Common Uses

Perfect for residential and commercial applications where streamlined, reliable dimming and power for 24V LED tape lights or fixtures is needed, such as kitchens, living rooms, offices, and retail spaces.

RESOURCES AND DOWNLOADS

Proluxe Navi Dim Series Spec Sheet
