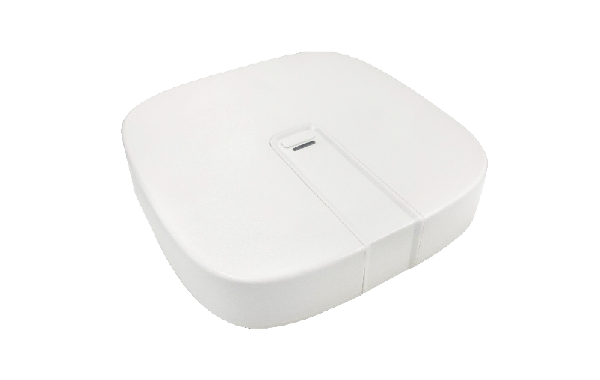

AleoBlue Gateway, Bluetooth Mesh Network Controller, 12V DC, Wall/Surface Mount, SGW-101

By Aleo LED Lighting

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

AleoBlue Gateway, Bluetooth Mesh Network Controller, 12V DC, Wall/Surface Mount, SGW-101

$1,529.28
MSRP: $1,775.06
You save $ 245.78 (14%)
  • SKU: EE-SGW-101
  • MPN: SGW-101

Quick Overview

Compact Bluetooth mesh gateway for lighting control, 120 x 120 x 25 mm, connects and manages up to 200 devices, wall/surface mount, 12V DC power.

Availability: 1 business day
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The AleoBlue Gateway SGW-101 is a powerful IoT device designed to connect, monitor, and manage Bluetooth mesh lighting networks in commercial buildings. As a core component of the AleoBlue series, it enables seamless scheduling, remote control, and energy monitoring of lighting systems, making advanced lighting management accessible and intuitive.

Key Features and Benefits

  • Effortlessly connects Bluetooth mesh networks to the cloud for advanced scheduling and control
  • Supports up to 200 devices per gateway for scalable solutions
  • Remote monitoring, maintenance, and over-the-air updates for hassle-free operation
  • Advanced security with encrypted OS, secure boot, and automatic updates
  • Energy and occupancy monitoring with visual heatmaps and API access
  • User-friendly web and iOS apps for easy commissioning and management
  • No need for additional wiring or central control boxes
  • Customizable lighting zones, scenes, and control parameters
  • DLC NLC qualified for high performance and reliability

Specifications

  • Power Supply: 12V DC, 1-1.5A
  • Dimensions: 120 x 120 x 25 mm (4.7 x 4.7 x 1 in.)
  • Operating Temperature: 0°C to +70°C (32°F to 158°F)
  • Communication: Bluetooth mesh, TCP/IP, IPv4
  • Ports: 1 x RJ45 10/100 Ethernet (PoE option)
  • Processor: NXP i.MX6 UltraLite, Ubuntu Core OS
  • Housing: ABS, PC, wall or surface mount

Common Uses

Ideal for indoor commercial applications such as retail, education, hospitality, corporate offices, warehouses, and self-storage facilities seeking advanced, scalable lighting control and monitoring.

RESOURCES AND DOWNLOADS

AleoBlue Gateway Spec Sheet
