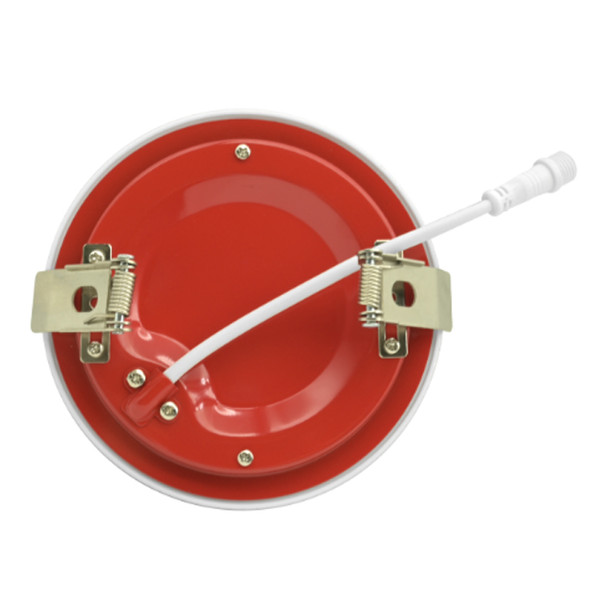

ATG Electronics EDF6, 6" Fire Rated LED Recessed Downlight, 15W, 120V, TRIAC Dimming, 2700K|3000K|3500K|4000K|5000K Selectable

By ATG Electronics

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ATG Electronics EDF6, 6" Fire Rated LED Recessed Downlight, 15W, 120V, TRIAC Dimming, 2700K|3000K|3500K|4000K|5000K Selectable

$25.45
  • SKU: ATG-EDF6-15W-T1
  • MPN: EDF6-15W-T1

Quick Overview

6" fire rated LED recessed downlight, 15W, 120V, selectable 2700K-5000K CCT, adjustable lumen outputs up to 1,650lm, ultra-thin edge-lit design, 90+ CRI.

In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ATG Electronics EDF6-15W-T1 is a 6-inch fire rated LED recessed downlight designed for safety, versatility, and high performance. As part of ATG's eLucent series, this fixture stands out for its ultra-thin edge-lit design and selectable color temperature, making it a flexible solution for modern lighting needs.

Key Features and Benefits

  • Selectable color temperature: 2700K, 3000K, 3500K, 4000K, or 5000K for tailored ambiance
  • Adjustable lumen outputs up to 1,650lm for optimal brightness
  • Ultra-thin edge-lit construction for low-profile installations
  • Durable steel housing with 2-hour fire resistance (UL 263 certified)
  • High color rendering (90+ CRI) for vibrant, true-to-life colors
  • Dimmable to 5% with TRIAC dimmers for precise lighting control
  • IC-rated and air-tight for direct contact with insulation
  • Wet location rated, EnergyStar listed, and CA Title 24 compliant
  • L70 lifetime over 100,000 hours for long-lasting performance
  • Easy installation with spring-loaded retention tabs and remote driver box

Specifications

  • Wattage: 15W
  • Lumens: 1,365lm (2700K) | 1,395lm (3000K) | 1,545lm (3500K) | 1,650lm (4000K) | 1620lm (5000K)
  • Voltage: 120V
  • Color Temperature: 2700K|3000K|3500K|4000K|5000K (selectable)
  • CRI: >90
  • Finish: White trim, red fire-rated backside
  • Dimensions: 6" aperture

Common Uses

Ideal for multi-residential buildings, classrooms, offices, lobbies, restrooms, retail spaces, medical facilities, libraries, meeting rooms, dining areas, airports, dealerships, hallways, and stairwells.

RESOURCES AND DOWNLOADS

ATG Electronics EDF6 Spec Sheet
