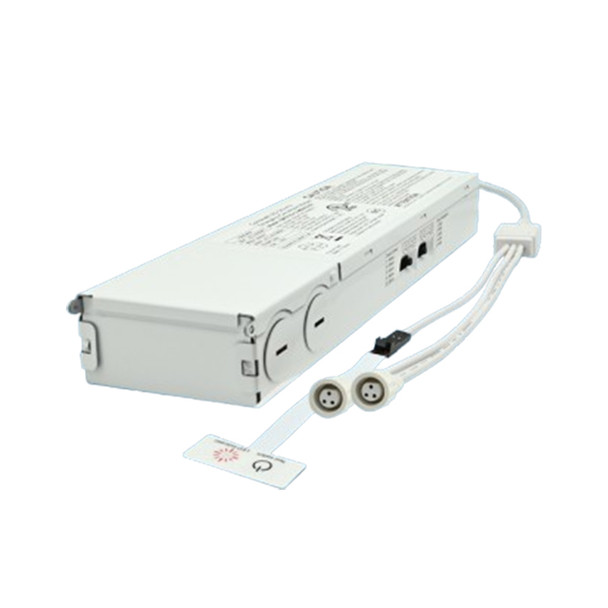

ATG Emergency Backup Driver for Remote J-Box Downlight, 24W Max Adaptive Power, 3.5W Emergency Power, 120-347V, Triac Dimmable & 0-10V, LiFePO4, 90-Minute Emergency, EMCTO3-18-MS5C5-D1

By ATG Electronics
ATG Emergency Backup Driver for Remote J-Box Downlight, 24W Max Adaptive Power, 3.5W Emergency Power, 120-347V, Triac Dimmable & 0-10V, LiFePO4, 90-Minute Emergency, EMCTO3-18-MS5C5-D1

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ATG Emergency Backup Driver for Remote J-Box Downlight, 24W Max Adaptive Power, 3.5W Emergency Power, 120-347V, Triac Dimmable & 0-10V, LiFePO4, 90-Minute Emergency, EMCTO3-18-MS5C5-D1

$152.75
  • SKU: ATG-EMCTO3-18-MS5C5-D1
  • MPN: EMCTO3-18-MS5C5-D1

Quick Overview

Emergency battery backup driver for remote J-box downlights with 120-347V input, 3.5W emergency output, selectable 160-320mA current, Triac/0-10V dimming compatibility, and 90-minute runtime.

UL Listed
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ATG Emergency Driver Series model EMCTO3-18-MS5C5-D1 is a compact emergency backup solution designed for remote J-box downlights. It combines normal driver support and emergency conversion in one unit to keep critical spaces illuminated during outages. Built for commercial reliability, it delivers dependable 90-minute emergency operation with automatic recharge.

Key Features and Benefits

  • 2-in-1 emergency converter and driver support simplifies fixture integration and wiring.
  • Maintains lighting for at least 90 minutes during power loss for life-safety readiness.
  • Supports both Triac and 0-10V dimming systems for broad control compatibility.
  • Long-life LiFePO4 battery chemistry with automatic return to charging mode after power restoration.
  • Visual red status indicator provides quick charging/discharge condition checks.
  • UL certified design with a 5-year warranty for dependable commercial performance.

Specifications

  • Input Voltage: 120-347V
  • Frequency: 50/60Hz
  • Input Power (Charging): <2.5W
  • Battery Capacity: 1600mAh
  • Emergency Time: 90 minutes
  • Initial Charge Time: 24 hours
  • Emergency Power: 3.5W
  • Adaptive Power: 24W Max
  • Output Current: 160mA|200mA|240mA|280mA|320mA
  • Output Voltage Range: 30-50V
  • CCT Compatibility: 2700K|3000K|3500K|4000K|5000K
  • Operating Temperature: 0b0C to 50b0C (32b0F to 122b0F)
  • Dimensions: 9.72" x 2.76" x 1.38"
  • Net Weight: 0.6kg

Common Uses

Ideal for hospitals, offices, schools, universities, shopping malls, and other public or commercial buildings using remote J-box downlights in dry or damp locations.

RESOURCES AND DOWNLOADS

ATG Emergency Backup Driver for Remote J-Box Downlight Spec Sheet
