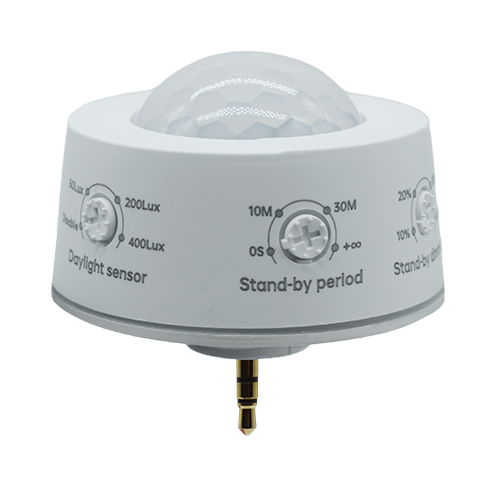

Best Lighting HD09VR-PH5-1, PIR Highbay Sensor, 12-24VDC Input, 0-10V Dimming, Manual & Remote Control, IP65, Daylight Harvesting, Photocell

By Best Lighting

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Best Lighting HD09VR-PH5-1, PIR Highbay Sensor, 12-24VDC Input, 0-10V Dimming, Manual & Remote Control, IP65, Daylight Harvesting, Photocell

$23.75
  • SKU: BL-HD09VR-PH5-1
  • MPN: HD09VR-PH5-1

Quick Overview

Compact PIR highbay sensor with 12-24VDC input, selectable detection area, hold time, daylight threshold, and standby dimming. Manual and remote control.

Availability: 4-5 business days
In Stock & Ready To Ship!
Current Stock:Only left: 2584
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Best Lighting HD09VR-PH5-1 is a versatile PIR highbay sensor designed for seamless integration with sensor-ready LED fixtures. This sensor enhances lighting efficiency with advanced features like daylight harvesting, photocell function, and flexible dimming control, making it a standout accessory in the Best Lighting lineup.

Key Features and Benefits

  • Easy programming with 5 manual switches and optional remote control
  • Supports 12-24VDC input and 0-10V dimming for broad compatibility
  • Daylight harvesting and photocell for automatic energy savings
  • Selectable detection area, hold time, daylight threshold, and standby dimming level
  • Elegant, compact round design with IP65 rating for durability
  • Works with Best Lighting sensor-ready fixtures (HBLSR, HBRSR, HBLASR, VTSR)
  • Reliable performance with up to 12m mounting height and 22.96ft detection radius
  • 5-year warranty and FCC certified

Specifications

  • Input Voltage: 12-24VDC
  • Stand-by Power: <15mA
  • Detection Area: 25% / 50% / 75% / 100%
  • Hold Time: 5s / 1min / 5min / 10min
  • Daylight Threshold: 50Lux / 200Lux / 400Lux / Disable
  • Standby Period: 0s / 10min / 30min / infinite
  • Standby Dimming Level: 10% / 20% / 30% / 50%
  • IP65 rated for demanding environments
  • Operating Temperature: -20℃ to +60℃
  • Mounting Height: up to 12m (39.37ft)

Common Uses

Ideal for warehouses, factories, gymnasiums, and large commercial spaces where automated, energy-efficient lighting control is essential.

RESOURCES AND DOWNLOADS

Best Lighting HD09VR-PH5-1 Spec Sheet
