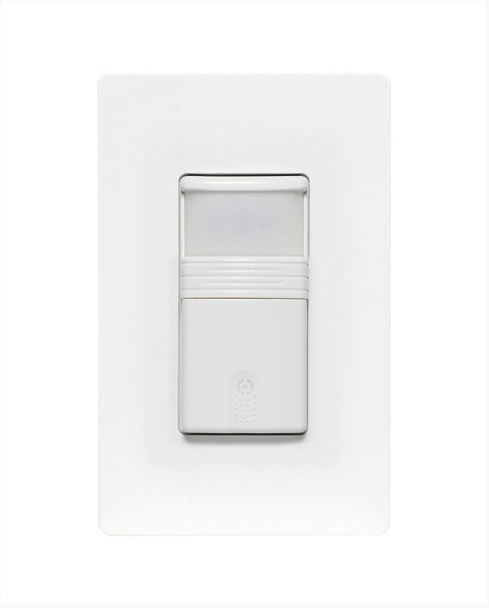

Cyber Tech Lighting PIR Vacancy & Occupancy Sensor Switch, White, 120V|277V, Single Pole/3-Way, 180° Field of View, 30' Range

By Cyber Tech Lighting

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Cyber Tech Lighting PIR Vacancy & Occupancy Sensor Switch, White, 120V|277V, Single Pole/3-Way, 180° Field of View, 30' Range

$18.30
  • SKU: CTL-SWMS-OCV3W-WH
  • MPN: SWMS-OCV3W-WH

Quick Overview

Dual-mode PIR wall sensor switch with occupancy (auto on/off) and vacancy (manual on/auto off) operation, 120V/277V input, adjustable delay/sensitivity/light level, and 180° coverage up to 30'.

UL Listed
Title 24 Compliant
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Cyber Tech Lighting SWMS-OCV3W-WH is a PIR vacancy and occupancy wall sensor designed to automate lighting control in commercial and residential spaces. As a dual-mode switch, it supports both energy-saving vacancy operation and convenient occupancy operation in one compact device. This model is a practical control solution in Cyber Tech Lighting’s sensor lineup for code-conscious and retrofit-friendly projects.

Key Features and Benefits

  • 2-in-1 control modes: choose occupancy mode (auto on/auto off) or vacancy mode (manual on/auto off).
  • Built-in push button enables manual override and straightforward user interaction.
  • Adjustable time delay, motion sensitivity, and ambient light sensing for tailored performance.
  • Supports single-pole or 3-way wiring for flexible installation layouts.
  • Vacancy mode supports Title 24 compliance goals for energy code applications.
  • UL Certified construction for dependable safety and quality assurance.

Specifications

  • Voltage: 120V|277V
  • Frequency (Hz): 60
  • Load Rating: 800W at 120V, 1200VA at 277V
  • LED Load: 400VA max
  • Detection Coverage: 180° field of view, 12' wide, 30' out
  • Dimensions: 4.5" H x 2.75" W x 1.73" D
  • Finish / Color: White
  • Wiring: Single Pole or 3-Way

Common Uses

Ideal for private offices, conference rooms, classrooms, restrooms, hallways, utility rooms, and other interior spaces where automatic lighting shutoff and user-selectable control modes improve convenience and reduce energy waste.
