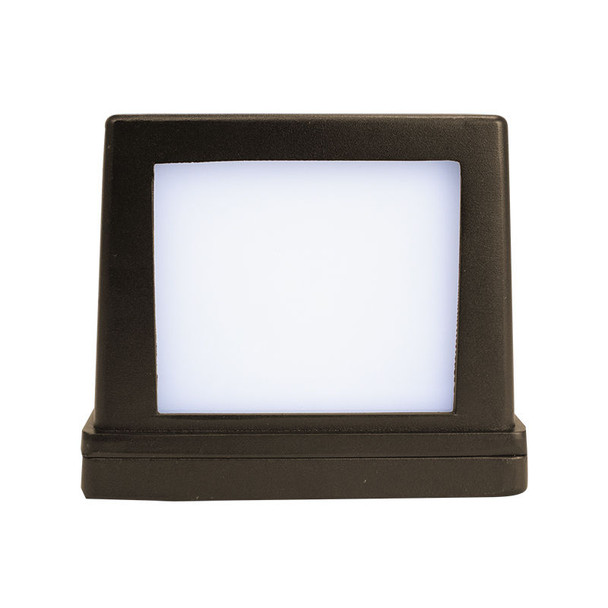

This Westgate Manufacturing LRS Series wall pack is a versatile and energy-efficient lighting solution for outdoor spaces. Its die-cast aluminum housing and powder-coated finish ensure durability and resistance to the elements, making it ideal for general site lighting, residential buildings, doorways, pathways, and parking areas.
Key Features and Benefits
- Multiple CCT options (3000K, 4000K, 5000K) with an internal CCT switch
- Adjustable wattage settings of 20W, 25W, and 30W, delivering up to 2100 lumens
- High efficacy of 70 LPW
- Long rated life of 70,000 hours
- TRAIC dimming capability
- CRI ≥ 80 for quality light output
- 7-Year Warranty
- IP42 rated, suitable for wet locations
Specifications
- Beam Angle: 90° x 110°
- Operating Temperature: -4ºF to 104ºF
- Aluminum housing with a steel plate
- Can be installed as up light or down light
Common Uses
The LRS Series wall pack is commonly used for illuminating pathways, residential areas, doorways, and parking lots, providing safety and security with its bright and adjustable lighting.
RESOURCES AND DOWNLOADS
Die-Cast High Performance Wall Pack, 20W-30W MCTP Spec Sheet
| SKU | WM-LRS-P2-MCTP-BR |
|---|---|
| Weight | 16.00 LBS |
| Total Input Watts | 20W |
| Total Input Watts | 25W |
| Total Input Watts | 30W |
| Lumen Output | 70/W |
| Color Temperature (CCT) | 3000K |
| Color Temperature (CCT) | 4000K |
| Color Temperature (CCT) | 5000K |
| Voltage | 120V |
| Color Rendering Index (CRI) | 80 |
| L70 Expected Life (hours) | 50,000 |
| Listings and Ratings | ETL |
