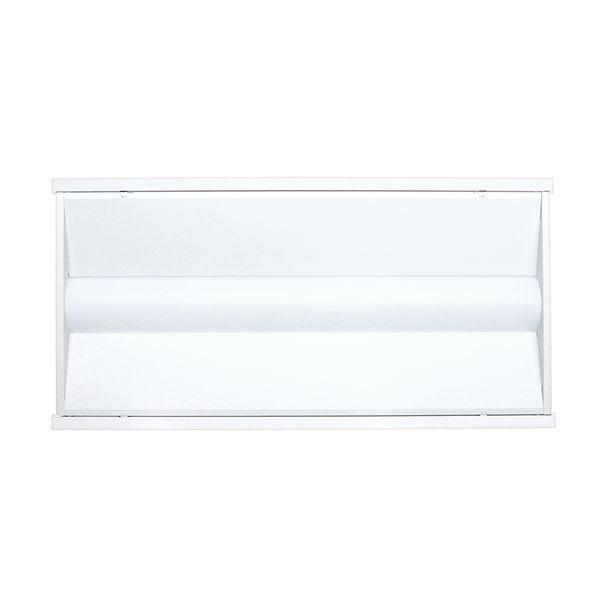

VOL-R Volumetric Troffer Retrofit, 2'x4', 49/39/34/29W, 3500K/4000K/5000K Selectable, 120-277V, 0-10V Dimming

By Eiko Global
VOL-R Volumetric Troffer Retrofit, 2'x4', 49/39/34/29W, 3500K/4000K/5000K Selectable, 120-277V, 0-10V Dimming

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

VOL-R Volumetric Troffer Retrofit, 2'x4', 49/39/34/29W, 3500K/4000K/5000K Selectable, 120-277V, 0-10V Dimming

$70.55 - $76.30
  • SKU: E-VOL24R/PS49/UD
  • MPN: VOL24R/PS49/UD

Quick Overview

2'x4' architectural LED troffer retrofit with selectable 49/39/34/29W and 3500K/4000K/5000K CCT, delivering up to 6,300 lumens at 120-277V for offices, schools, healthcare, and commercial interiors.

UL Listed
DLC Standard
DAMP RATED
WARRANTY 5 YEARS
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Want to save or compare this item?

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO VOL-R series volumetric troffer retrofit is an architectural LED upgrade designed for fast one-for-one replacement of fluorescent troffers. This 2'x4' configuration combines selectable wattage and FieldCCeT tuning to simplify stocking while supporting modern, comfortable direct/indirect illumination. As a core retrofit solution in EiKO’s commercial lineup, it helps reduce energy use and improve lighting quality across interior spaces.

Key Features and Benefits

  • PowerSet technology enables field-selectable output levels for flexible light planning and energy optimization.
  • FieldCCeT selectable 3500K/4000K/5000K supports adaptable visual environments from warm-neutral to crisp white.
  • 0-10V dim-to-off driver with low-end dimming below 5% supports advanced control strategies and occupant comfort.
  • Volumetric direct/indirect optical design with diffuse lens improves visual comfort and reduces harsh glare.
  • UL Listed for dry and damp locations and DLC Standard qualified for rebate-friendly, code-conscious projects.
  • Backed by a 5-year limited warranty for dependable long-term performance.

Specifications

  • Size: 2'x4'
  • Lumen Output: 6300/5000/4400/3700
  • Wattage: 49/39/34/29W
  • Input Voltage: 120-277V
  • Color Temperature: 3500K/4000K/5000K selectable
  • CRI: >80
  • Efficacy: 130 lm/W
  • Rated Life: >50,000 hours (L70)
  • Power Factor: >0.90
  • THD: <20%
  • Operating Temperature: -20b0C to 40b0C (-4b0F to 104b0F)
  • Construction: Powder-coated die-formed steel reflector with diffuse polycarbonate lens
  • Auxiliary Output: 12V, 60mA DC

Common Uses

Ideal for conference rooms, offices, retail areas, hospitality spaces, healthcare facilities, schools, reception areas, corridors, and foyers where efficient, comfortable general illumination is required.

RESOURCES AND DOWNLOADS

VOL-R Volumetric Troffer Retrofit Spec Sheet
