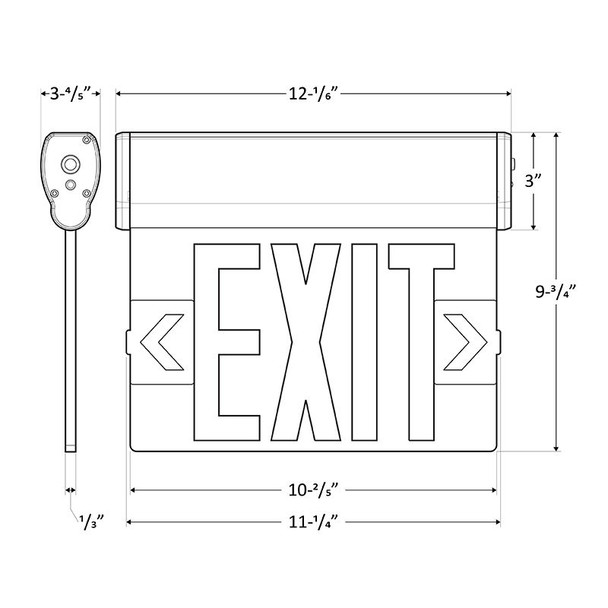

XT-EL Series Edgelit LED Exit Sign, Size: 9 3/4"(H) x 12 1/6"(W) x 1 4/5"(D), Color Temperature: 1001K, Lumen Output: 13LM
The Westgate Manufacturing XT-EL Series Edgelit LED Exit Sign with Aluminum Housing is a reliable and energy-efficient solution for clearly marking exit points in various settings. Its compact size and universal mounting options make it versatile for many applications.
Key Features and Benefits
- Highly visible red letters with 6” height and 3/4" stroke
- Built-in 34.8V 400mAh Nickel cadmium battery for minimum 90 minutes emergency operation
- Aluminum housing with acrylic (mirror) panel
- Universal ceiling & wall mounting plate allows top, back, or end installation
- Test switch and charge indicators
- Removable directional indicators (Chevrons)
- 3-Year Warranty
Specifications
- Power: 2.5W
- Voltage: 120V-277V AC Dual voltage operation
- Color Temperature: 1001K
- Lumen Output: 13LM
Common Uses
Ideal for every exit door, at the intersection of corridors, exit stairways or ramps, and other locations to provide clear exit guidance.
RESOURCES AND DOWNLOADS
| SKU | WM-XT-EL1RCA-EM |
|---|---|
| Weight | 10.00 LBS |
