EiKO BP1 Series Backlit Panel, 2x4, 50W/40W/30W, 3500K|4000K|5000K, Premium, 120-347V

By Eiko Global

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

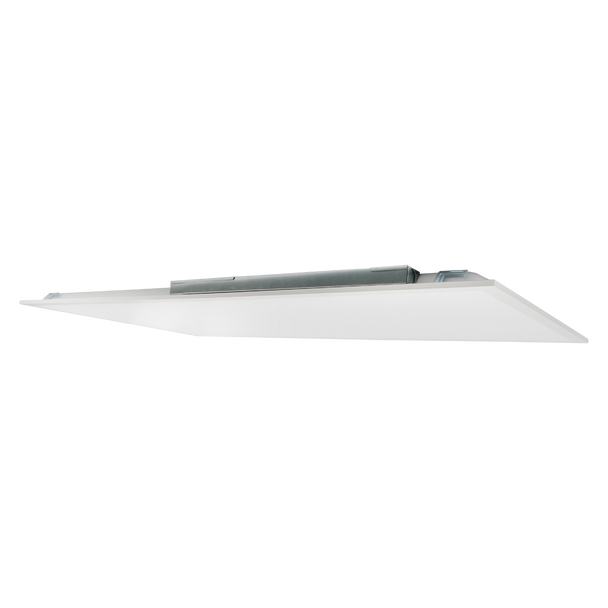

EiKO BP1 Series Backlit Panel, 2x4, 50W/40W/30W, 3500K|4000K|5000K, Premium, 120-347V

$60.95
  • SKU: E-BP1-24PS50P-FCCT-H
  • MPN: BP1-24PS50P-FCCT-H

Quick Overview

2x4 LED backlit panel with field-selectable 50W/40W/30W power, selectable 3500K|4000K|5000K CCT, and adjustable 6,250|5,000|3,750 lumen outputs for versatile installations.

In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO BP1 Series Backlit Panel in 2x4 size is a flagship solution for commercial lighting, offering advanced field-selectable power and color temperature options. Designed for flexibility and performance, this ultra-slim panel delivers uniform, high-efficacy illumination and is perfect for a wide range of ceiling applications.

Key Features and Benefits

  • Selectable wattage (50W/40W/30W) and CCT (3500K|4000K|5000K) for on-site customization
  • High lumen output up to 6,250 lumens for bright, even lighting
  • Wide input voltage range (120-347V) for compatibility with various installations
  • Premium efficacy up to 125 LPW for energy savings
  • Sturdy, low-profile steel frame with non-yellowing PMMA lens
  • IC rated for safe use in insulated ceilings
  • 0-10V dimming with Dim-to-Off for advanced lighting control
  • DLC Premium listed for quality and rebates
  • Long lifespan with L70 at over 100,000 hours
  • Integrated surge protection and low THD for reliability

Specifications

  • Size: 2x4
  • Lumens: 6,250|5,000|3,750 lm
  • Wattage: 50W|40W|30W
  • Voltage: 120-347V
  • Color Temperature: 3500K|4000K|5000K
  • CRI: >80
  • Efficacy: up to 125 LPW
  • L70: >100,000 hours
  • Dimming: 0-10V, Dim-to-Off
  • Certifications: DLC Premium, IC Rated

Common Uses

Ideal for offices, hospitals, schools, retail spaces, medical and dental offices, libraries, community centers, and commercial buildings seeking efficient, flexible, and reliable lighting.
