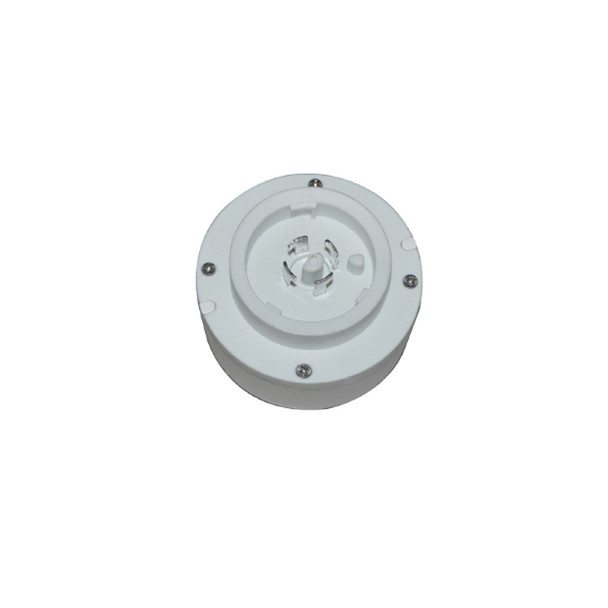

EiKO NLC Z10 Twist Lock Wireless PIR Motion Sensor, 12-24VDC, PIR, Daylight Harvesting, Bluetooth SIG Mesh, 0-10V, 8-40ft Mounting Height, White

By Eiko Global

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

EiKO NLC Z10 Twist Lock Wireless PIR Motion Sensor, 12-24VDC, PIR, Daylight Harvesting, Bluetooth SIG Mesh, 0-10V, 8-40ft Mounting Height, White

$54.15
  • SKU: E-SENA-WZPA-WH
  • MPN: SENA-WZPA-WH

Quick Overview

Wireless PIR motion sensor for EiKO NLC systems with Bluetooth SIG Mesh, 12-24VDC input, 0-10V dimming, daylight harvesting, and Z10 twist-lock installation. IP65 wet-rated design for garages, lots, and warehouse applications.

ETL Listed
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The EiKO SENA-WZPA-WH is a networked Z10 twist-lock wireless PIR motion sensor designed for modern lighting control projects. As part of EiKO’s NLC lineup, it enables scalable Bluetooth mesh control without requiring hubs or gateways. This sensor helps streamline commissioning while improving energy performance through occupancy-based and daylight-responsive control.

Key Features and Benefits

  • Bluetooth SIG Mesh connectivity supports flexible wireless lighting control across grouped zones and areas.
  • Fast Z10 twist-lock installation reduces field labor and simplifies sensor deployment.
  • Supports occupancy/vacancy strategies, daylight harvesting, trim settings, ambient threshold, and time delay via mobile/web apps.
  • Continuous and bi-level 0-10V dimming capability for improved energy savings and visual comfort.
  • Built for demanding environments with IP65 protection and wet-location suitability.
  • Certified for broad project acceptance: ETL Listed, FCC, and RoHS compliant, backed by a 5-year limited warranty.

Specifications

  • Input Voltage: 12-24VDC
  • Input Current: 50mA
  • Sensor Technology: PIR
  • Operating Frequency: 2.4GHz-2.483GHz
  • Mounting Height: 8'-40'
  • Communication Range: Up to 200'
  • Operating Temperature: -4°F to 140°F (-20°C to 60°C)
  • Housing: High-strength UV-resistant plastic
  • Finish: White
  • Installation Type: Z10 twist lock

Common Uses

Ideal for warehouses, parking garages, parking lots, car dealerships, and sports field lighting zones where wireless control, occupancy sensing, and daylight-based dimming are needed.
