Description

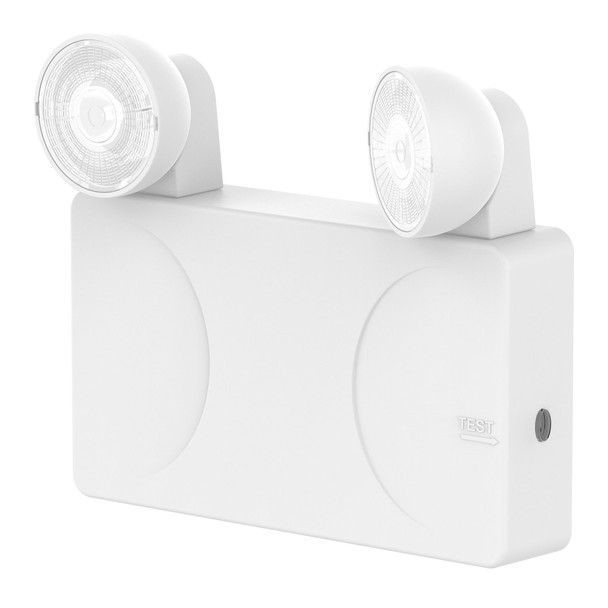

The Westgate EL Series EL-MT is a modern mini bug-eye emergency light designed for dependable egress illumination during power outages. As part of Westgate’s emergency lighting lineup, it combines compact styling, adjustable optics, and self-contained battery backup for code-oriented indoor safety applications.

Key Features and Benefits

Dual fully adjustable LED heads provide targeted light placement for corridors and open areas.
Self-contained Ni-MH battery system delivers a minimum 90-minute emergency runtime.
Built-in test switch and LED charge indicator simplify routine inspection and maintenance.
Includes interchangeable round and oval lens options for flexible light distribution.
UL Listed construction supports trusted performance in commercial installations.
Backed by a 3-year warranty for added peace of mind.

Specifications

Lumen Output: 150
Wattage: 1.5W per head (2 heads)
Voltage: 120-277V AC, 50/60Hz
Color Temperature: 5700K
Efficacy: 50 lm/W
Power Factor: >0.90
Battery: 3.6V 1000mAh Ni-MH
Mounting: Surface mount with universal J-box pattern
Head Adjustment: 90° vertical tilt, 350° horizontal rotation
Operating Temperature: 32°F to 122°F
IP Rating: IP20 (indoor use only)
BUG Rating: B0-U1-G0
Dimensions: 6.45"(H) x 7.32"(W) x 2"(D)

Common Uses

Ideal for commercial buildings, multifamily properties, offices, corridors, stairwells, and other indoor high-occupancy spaces requiring emergency egress lighting during mains power failure.

RESOURCES AND DOWNLOADS

Westgate EL-MT Modern Mini Bug-Eye Emergency Light Spec Sheet

Details

Battery Type:	Ni-MH
CRI:	60
Certifications:	UL Listed
Color Temperature:	5700K
Compliance & Warranty:	5 Year Warranty\|UL Listed\|3 Year Warranty
Dimming Type:	Non-Dimming
Efficacy (lm/W):	50
Finish / Color:	White
Frequency (Hz):	50\|60
IP Rating:	IP20
Item Height (Inch):	6.46
Item Length (Inch):	7.32
Item Weight (LBS):	0.77
Item Width (Inch):	2.01
Light Source:	Integrated LED
Lumen Output:	150
Max Ambient Temperature:	122°F
Power Factor:	0.90
Special Features:	Selectable Wattage\|Emergency Battery Included
Voltage:	120-277V
Wattage:	1.5W\|1W
