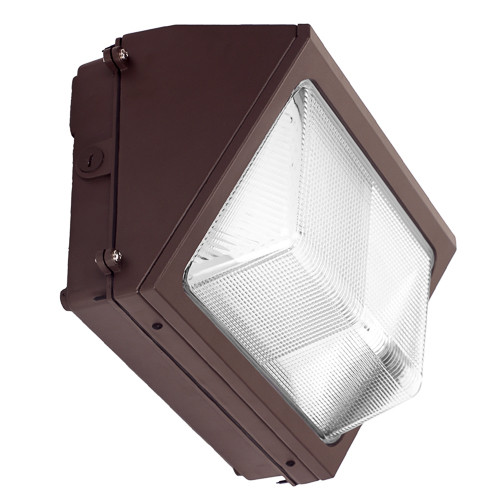

Energetic Lighting E4WPA Series Traditional Wall Pack, 75W/100W/120W, 10500/14000/16800 lumens, 120-277V, 3000K/4000K/5000K, CRI 80, Bronze, 0-10V Dimmable, Photocell

By Energetic Lighting

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

Energetic Lighting E4WPA Series Traditional Wall Pack, 75W/100W/120W, 10500/14000/16800 lumens, 120-277V, 3000K/4000K/5000K, CRI 80, Bronze, 0-10V Dimmable, Photocell

$102.90
  • SKU: ELI-E4WPA75120D-83050
  • MPN: E4WPA75120D-83050

Quick Overview

Wattage and CCT selectable LED wall pack for perimeter and security lighting, delivering up to 16,800 lumens at 120-277V with 0-10V dimming, integrated photocell, IP65 wet-location rating, and 10-year warranty.

UL Listed
Title 24 Compliant
WET RATED
WARRANTY 10 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The Energetic Lighting E4WPA series is a commercial-grade LED wall pack designed to replace traditional HID fixtures in demanding outdoor environments. This 75-120W selectable model combines high output, field flexibility, and rugged construction for reliable perimeter and security illumination. With selectable CCT and integrated photocell control, it is a versatile solution across industrial and commercial sites.

Key Features and Benefits

  • Field-selectable power levels (100%/80%/60%) help match light output to site needs while reducing energy use.
  • Selectable 3000K/4000K/5000K CCT supports warm to crisp white lighting preferences in one fixture.
  • Integrated dusk-to-dawn photocell automates operation for improved convenience and energy savings.
  • Heavy-duty ADC12 die-cast aluminum body with borosilicate glass lens provides long-term durability.
  • IP65 weather-resistant design with robust seals helps block moisture and insect ingress.
  • UL Listed, Title 24 Compliant, DLC Premium listed, and backed by a 10-year warranty.

Specifications

  • Lumen Output: 10500|14000|16800
  • Wattage: 75W|100W|120W
  • Voltage: 120-277V
  • Color Temperature: 3000K|4000K|5000K
  • CRI: 80
  • Efficacy (lm/W): 135
  • Dimming Type: 0-10V
  • Power Factor: 0.9
  • THD: 0.2
  • Rated Life (70 Hours): 50000
  • Max Ambient Temperature: 113b0F
  • Finish / Color: Bronze
  • IP Rating: IP65
  • Wet Rated: true
  • Primary Material: ADC12 die-cast aluminum
  • Lens Material: Borosilicate glass

Common Uses

Ideal for building perimeters, pathways, loading docks, retail exteriors, and general commercial or industrial security lighting where dependable wet-location performance is required.
