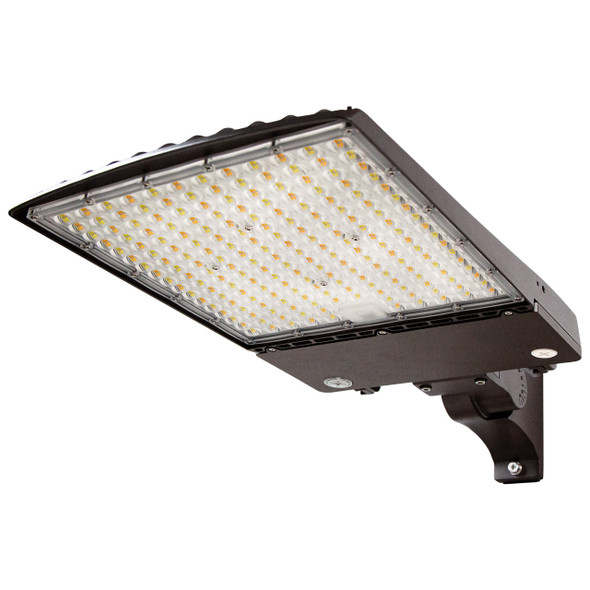

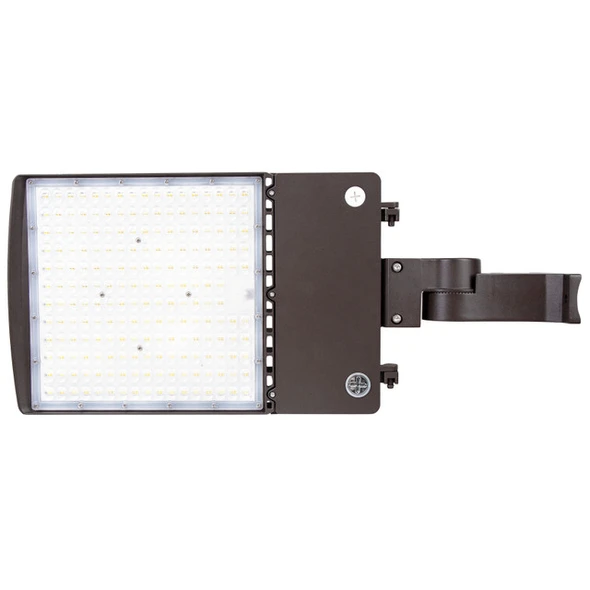

ESL Vision Area Light, 100W-120W-150W, 3000K-4000K-5000K, Bronze, Type III, 120-277V

By ESL Vision

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ESL Vision Area Light, 100W-120W-150W, 3000K-4000K-5000K, Bronze, Type III, 120-277V

$275.50
  • SKU: ESL-ESL-AL-100150W-D13050-BZ-T3
  • MPN: ESL-AL-100150W-D13050-BZ-T3

Quick Overview

ESL Vision selectable LED area light for parking lots and site lighting with 100W/120W/150W and 3000K/4000K/5000K options, up to 25,500 lumens, 0-10V dimming, IP65 housing, and Type III distribution.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left: 4
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ESL Vision Area Light Series delivers flexible, high-performance outdoor illumination for commercial and municipal projects. This 1st generation selectable model combines multi-watt and multi-CCT control in one fixture, helping contractors simplify inventory while matching site-specific lighting needs. Built for durability and efficiency, it is a dependable choice for long-term area lighting upgrades.

Key Features and Benefits

  • Field-selectable output with 100W, 120W, or 150W settings for adaptable light levels
  • Selectable 3000K, 4000K, and 5000K CCT to tune visual comfort and visibility
  • Rugged die-cast aluminum body with PC lens and IP65 protection for outdoor reliability
  • Smooth 0-10V dimming to off for energy savings and control integration
  • High efficacy up to 170 lm/W to reduce operating costs
  • Backed by a 5-year warranty with UL certification and DLC Premium listing

Specifications

  • Lumen Output: 25500
  • Voltage: 120-277V
  • CRI: 80+
  • Frequency: 50/60
  • Power Factor: >0.97@120V, >0.92@277V
  • THD: <20%
  • Operating Temperature: -40b0F to 122b0F (-40b0C to 50b0C)
  • Rated Life (L70): 120000 hours (TM-21 calculated)
  • Dimensions: 16.63" x 8.66" x 2.07"
  • Weight: 6.2 lbs
  • Surge Protection: 6kV driver

Common Uses

Ideal for parking lots, roadways, campuses, auto dealerships, perimeter security lighting, and general commercial site illumination where efficient, weather-resistant area lighting is required.

RESOURCES AND DOWNLOADS

ESL Vision Area Light Spec Sheet
