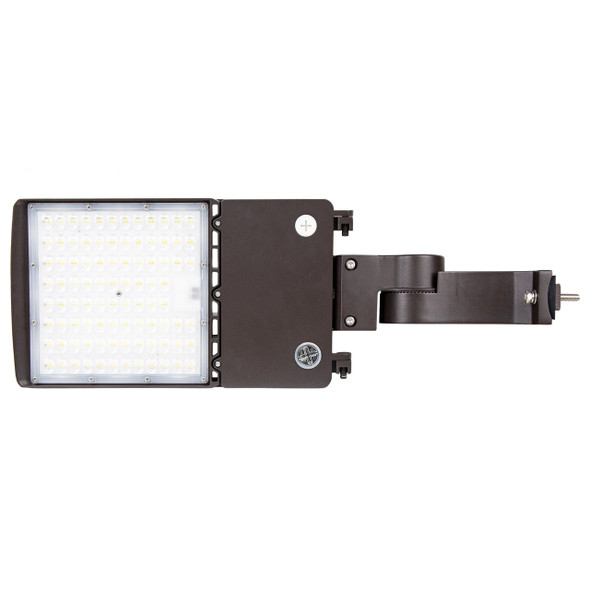

ESL Vision Area Light, 200W/240W/300W, 3000K/4000K/5000K, Bronze, Type III Distribution, 120-277V

By ESL Vision

Note: Product images are for illustration purposes only. Do not rely on product image alone to make a purchase decision. Actual product may vary due to specific configurations. Always refer to spec sheets for details.

ESL Vision Area Light, 200W/240W/300W, 3000K/4000K/5000K, Bronze, Type III Distribution, 120-277V

$374.15
  • SKU: ESL-ESL-AL-200300W-D13050-BZ-T3
  • MPN: ESL-AL-200300W-D13050-BZ-T3

Quick Overview

ESL Vision Area Light with selectable 200W/240W/300W and 3000K/4000K/5000K settings, delivering up to 51,000 lumens at 170 lm/W. Features 0-10V dimming, IP65 protection, and durable die-cast aluminum housing for outdoor site lighting.

UL Listed
WET RATED
WARRANTY 5 YEARS
IP65
In Stock & Ready To Ship!
Current Stock:Only left:
Estimate shipping in cart
Call, chat, or email
for support
Ships via

Frequently Bought Together:

Total: Inc. Tax
Total: Ex. Tax
Description

The ESL Vision Area Light Series is a versatile outdoor lighting solution engineered for parking lots, campuses, and perimeter applications. This configurable fixture combines multi-watt and multi-CCT flexibility in one SKU, helping contractors and facility teams simplify inventory while meeting varied site requirements.

Key Features and Benefits

  • Field-selectable output with 200W, 240W, or 300W settings for adaptable light levels
  • Selectable 3000K/4000K/5000K CCT to match visual comfort and security needs
  • Rugged die-cast aluminum body with high-quality polycarbonate lens for long-term outdoor durability
  • 0-10V dimming with dim-to-off capability for energy savings and control integration
  • IP65-rated construction for reliable performance in wet and dusty environments
  • Backed by a 5-year warranty and supported by UL certification and DLC Premium listing (model dependent)

Specifications

  • Lumen Output: 51000
  • Efficacy (lm/W): 170
  • Voltage: 120-277V
  • Frequency (Hz): 50/60
  • CRI: 80
  • Power Factor: 0.97|0.92
  • THD: 20
  • Max Ambient Temperature: 50b0C
  • Rated Life (70 Hours): 120000
  • Surge Protection: 6kV driver
  • Dimensions: 20.05" x 11.89" x 2.07"
  • Weight: 6.2 lbs

Common Uses

Ideal for parking areas, roadways, building perimeters, commercial complexes, industrial yards, and general area/security lighting where high output, weather resistance, and flexible configuration are required.

RESOURCES AND DOWNLOADS

ESL Vision Area Light Spec Sheet
